543A

(1962 - 2004)

In the begins of 60s, MAZ started development of an all-wheel drive chassis MAZ 543. These were the vehicles of the 4th generation. Its design was similar to MAZ 537G, but was fitted with new units, cabins and longer frame. The new chassis was equipped with a 525 hp D12A-525A V12 diesel, automatic transmission with an updated torque converter and a 3-speed gearbox.

MAZ 543 range included chassis MAZ 543, MAZ 543A and MAZ 543M with fiberglass side cabins. There was a place for radiator and the front part of a missle rocket between cabins. All variant had wheelbase of 7.7 meters, top speed - 60 kph and fuel consumption - 80 liters per 100 km.

The first version of the new range was a light chassis MAZ 543 with a payload of 19.1 tonnes. The first 6 prototypes were made in the spring of 1962. Mass production started in 1965. They got 2 twin-door cabins (the left and right). 1631 copies were made. They become the base chassis for a missle complex 9K71 'Temp' and missle launcher 9P117.

In 1963, MAZ 543A with a payload of 19.4 tonnes was presented. It was developed for a missle complex 9P120 'Temp-S'. Mass production started in 1966. The main difference from MAZ 543 is slightly shifted to the front both cabins. Till the middle of 2000s, more than 2600 chassis were made.

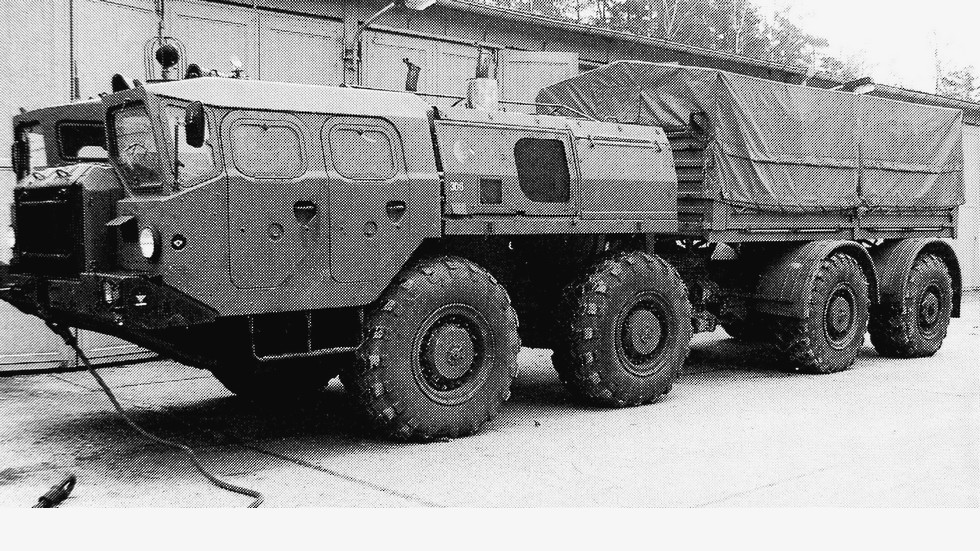

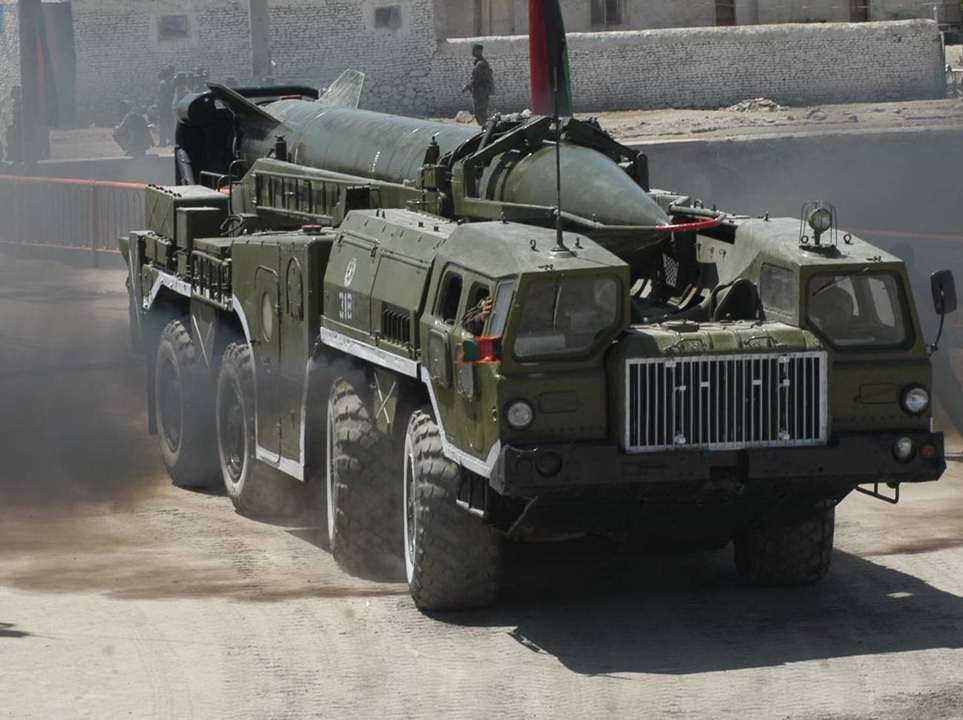

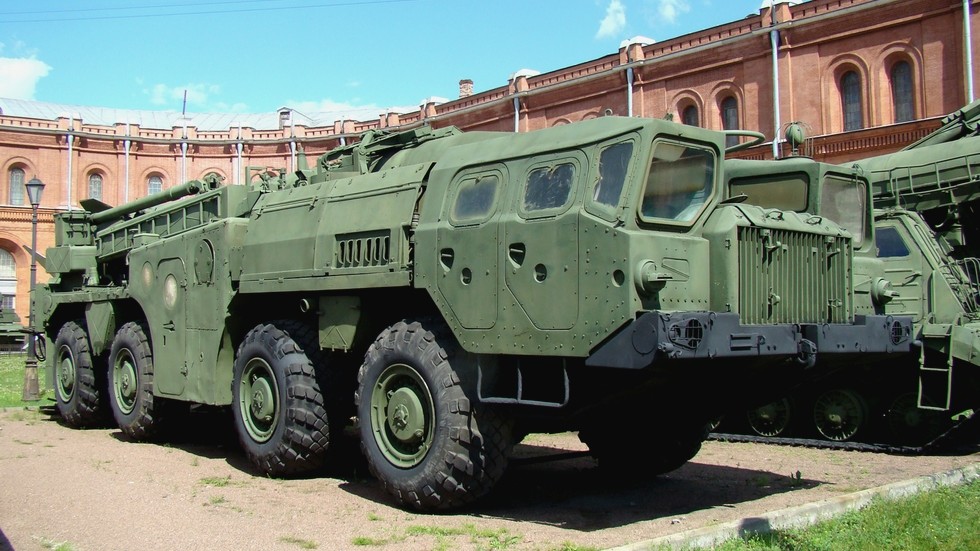

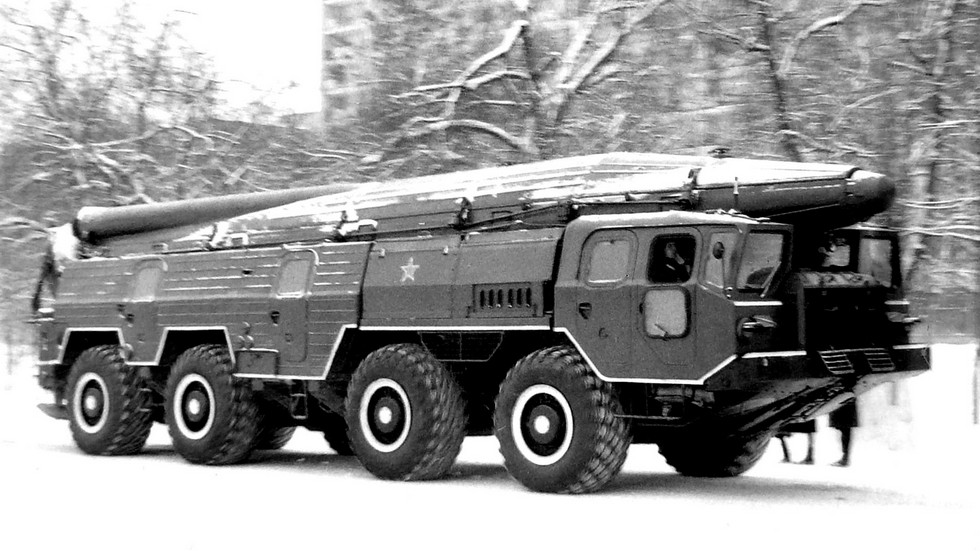

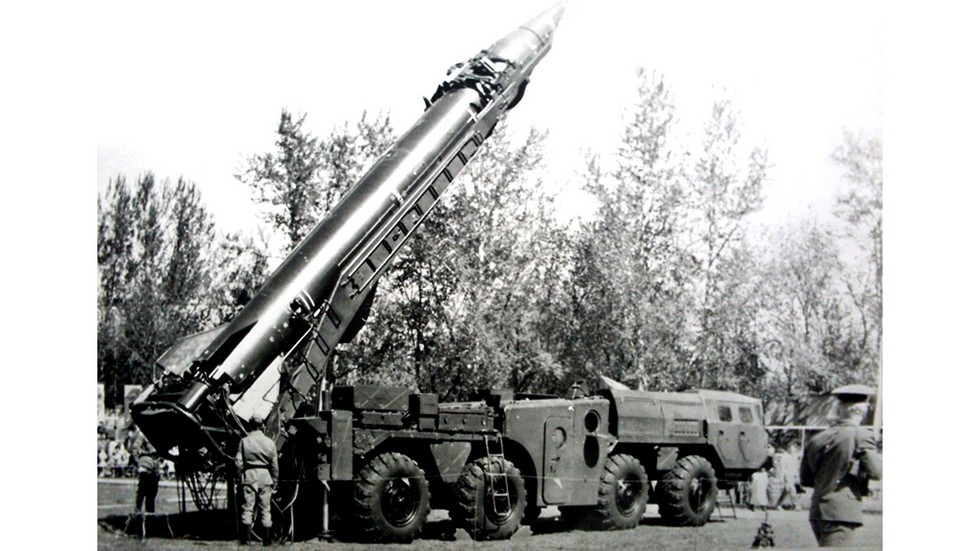

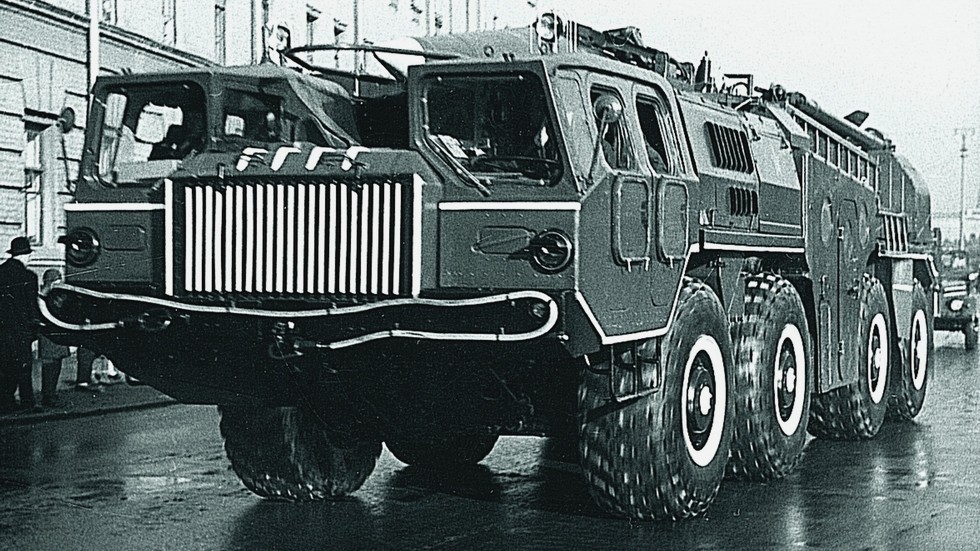

MAZ 543 with a missle complex 9K72	MAZ 543 prototype	Late MAZ 543	MAZ 543 with a flatbed cargo platform

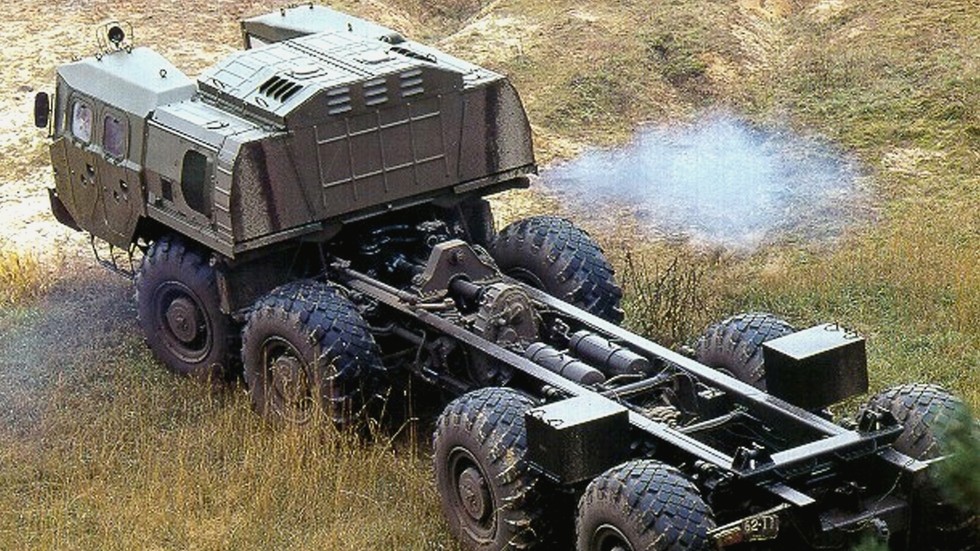

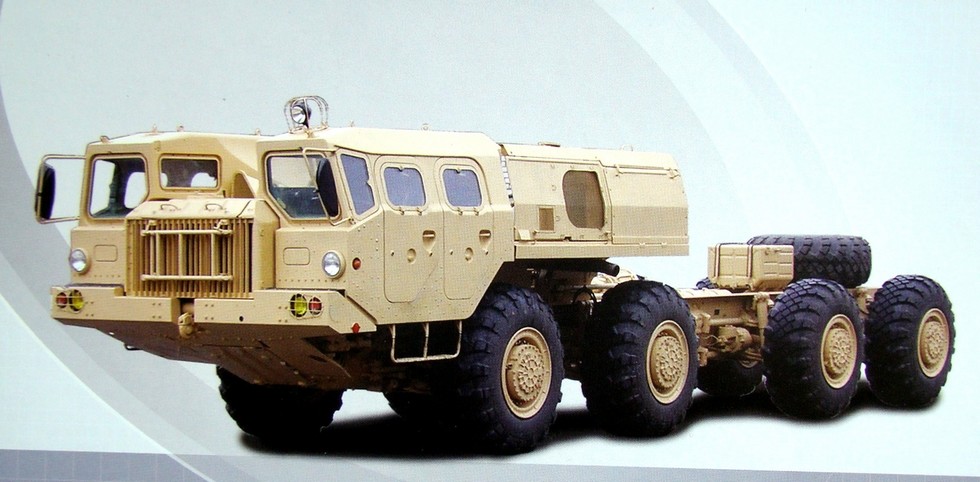

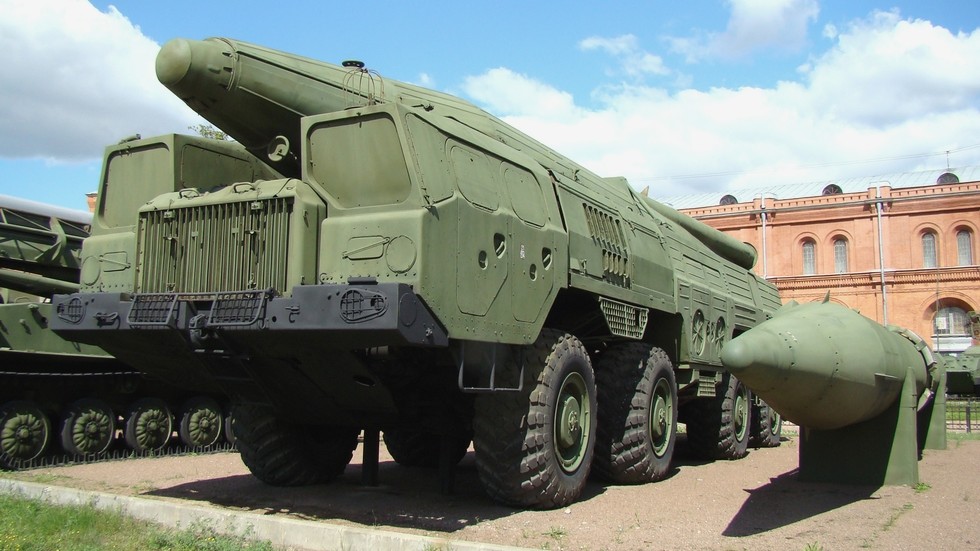

MAZ 543 with a missle complex 9K72	MAZ 543 with a missle complex 9K72	MAZ 543 with a missle complex 9K72	MAZ 543A

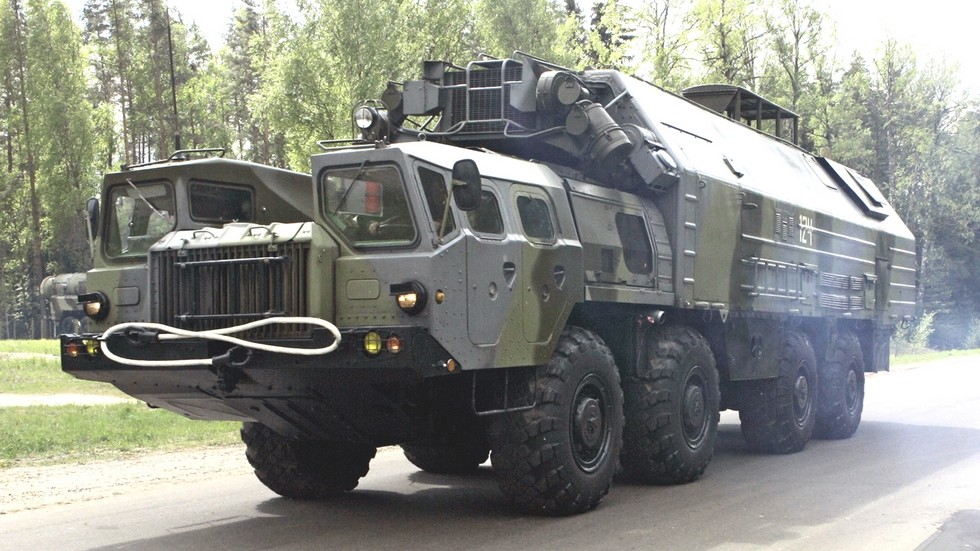

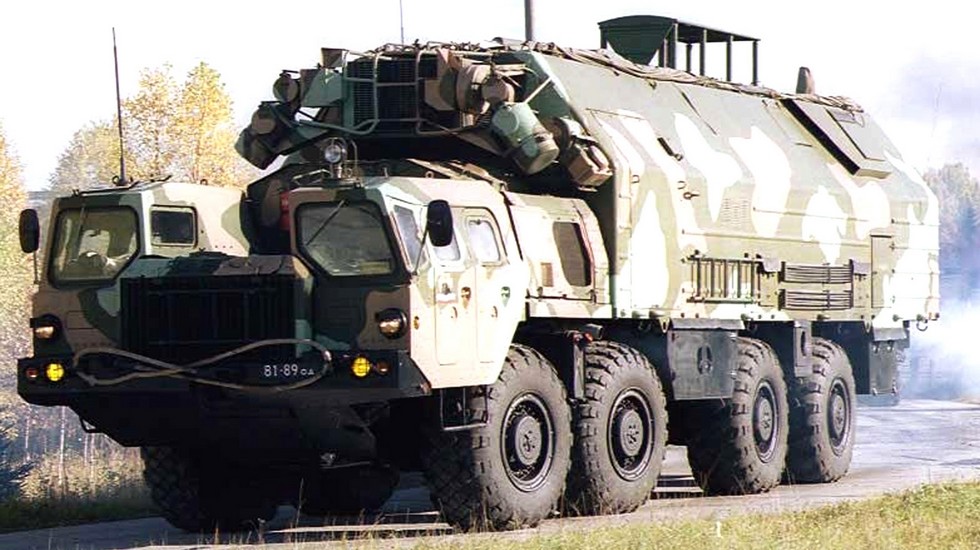

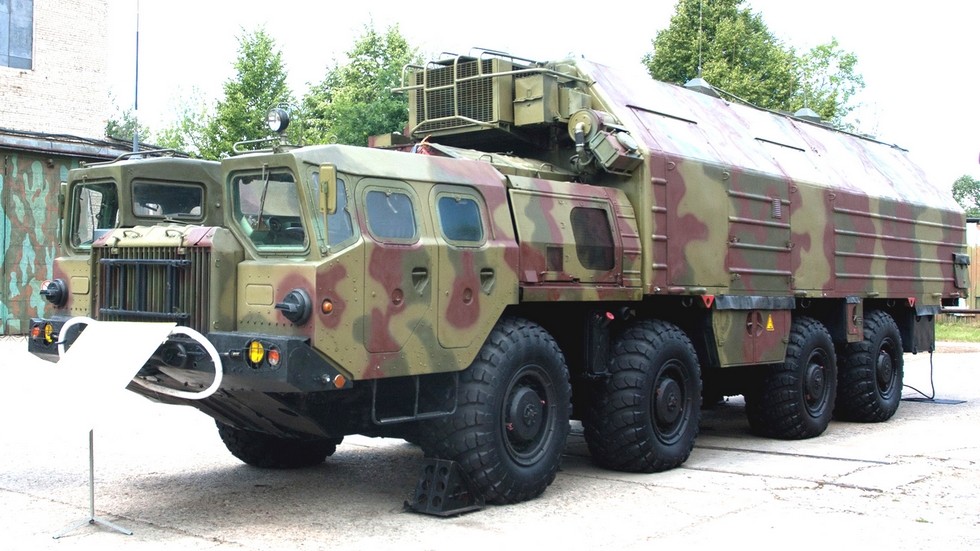

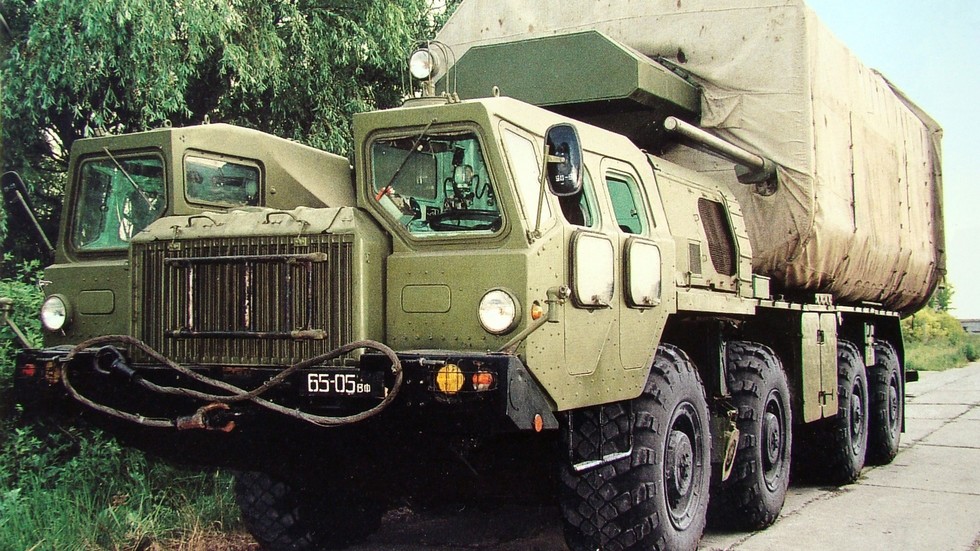

MAZ 543A with a complex 'Temp-S'	MAZ 543A with a complex 'Temp-S'	MAZ 543A

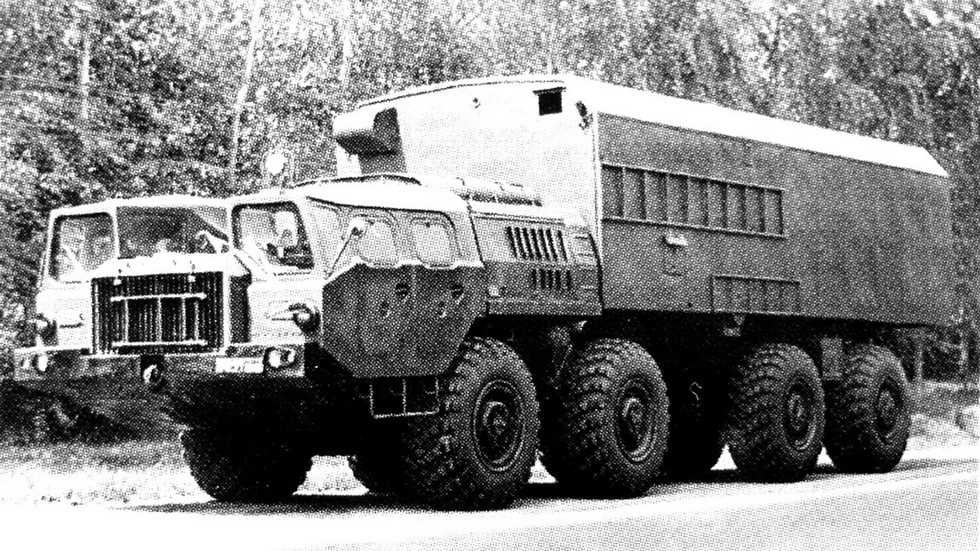

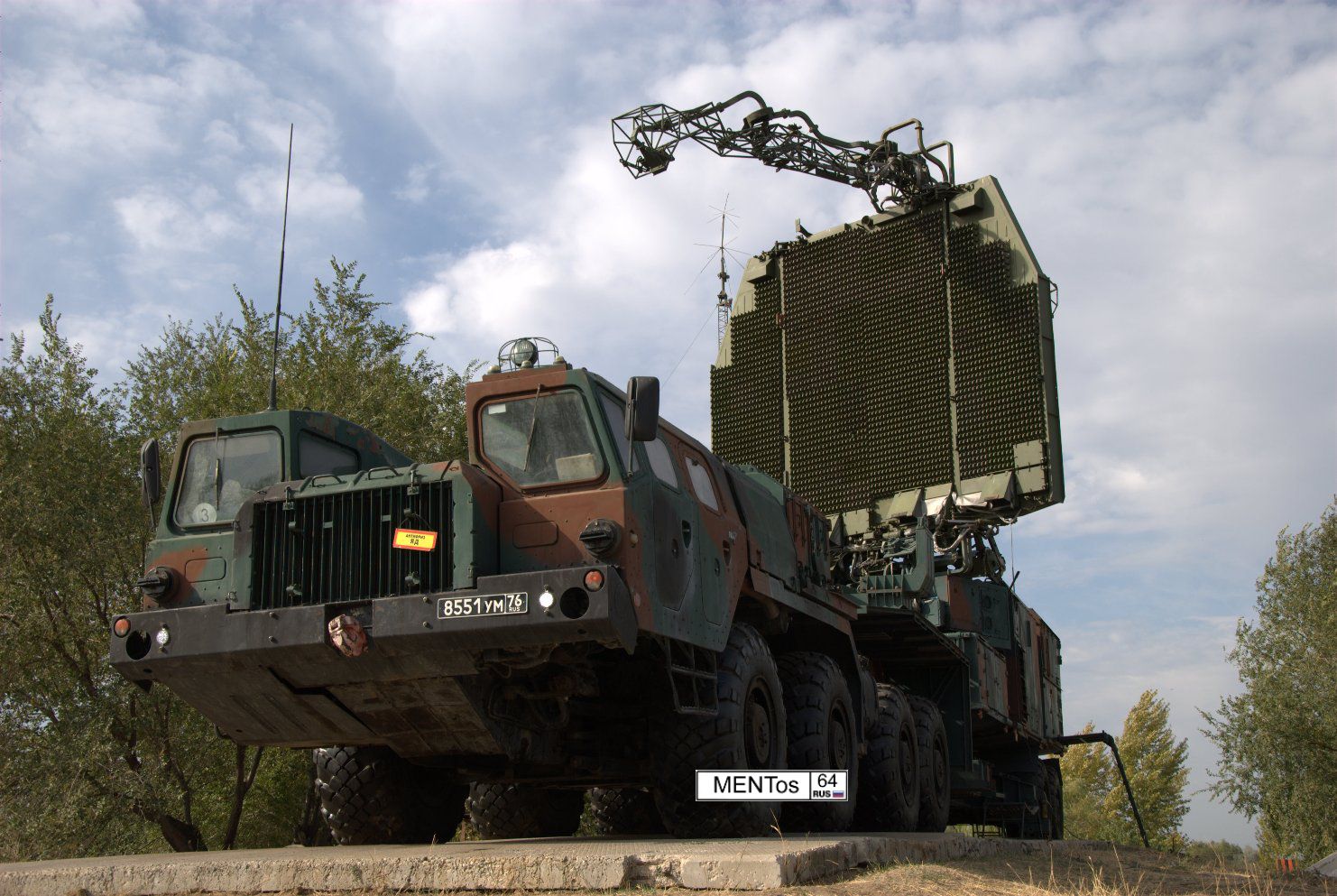

	MAZ 543A with a 14.5 tonnes body	MAZ 543A 15V82	MAZ 543A 15V179

MAZ 543A 15V179	MAZ 543A 15V129
