Mercedes-Benz » T2 series II

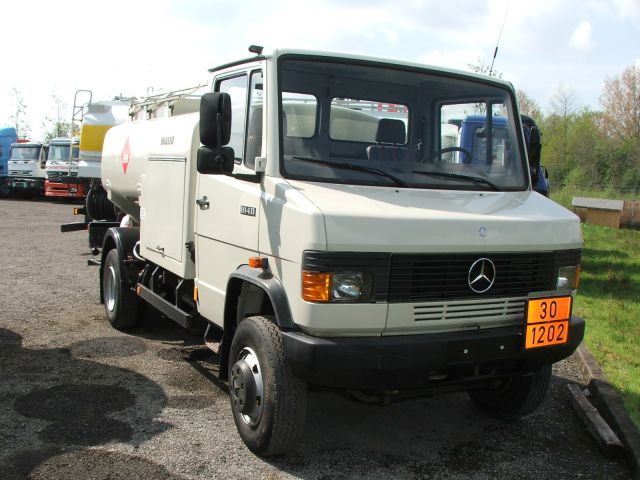

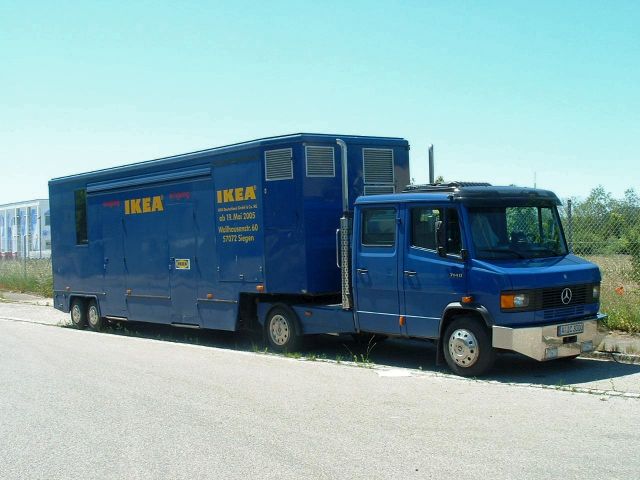

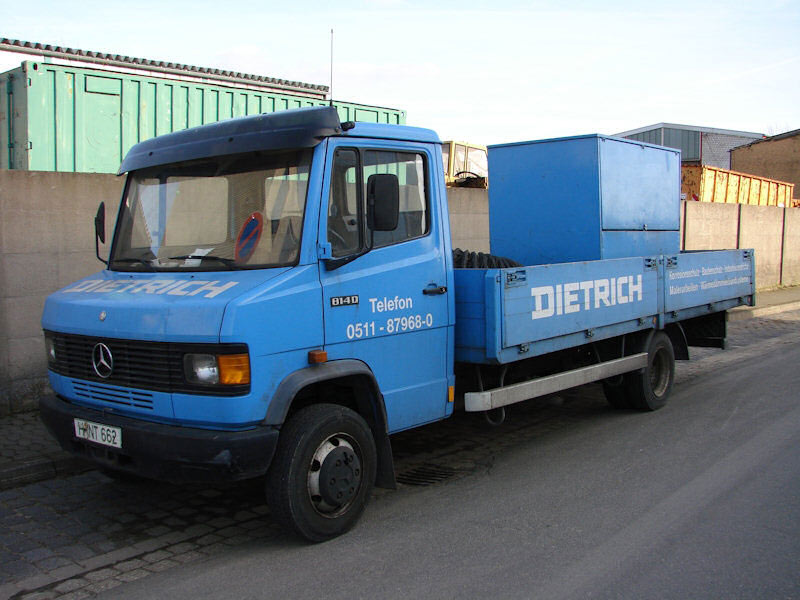

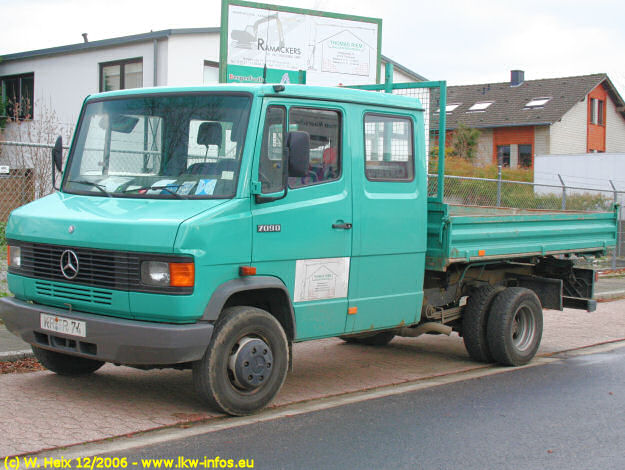

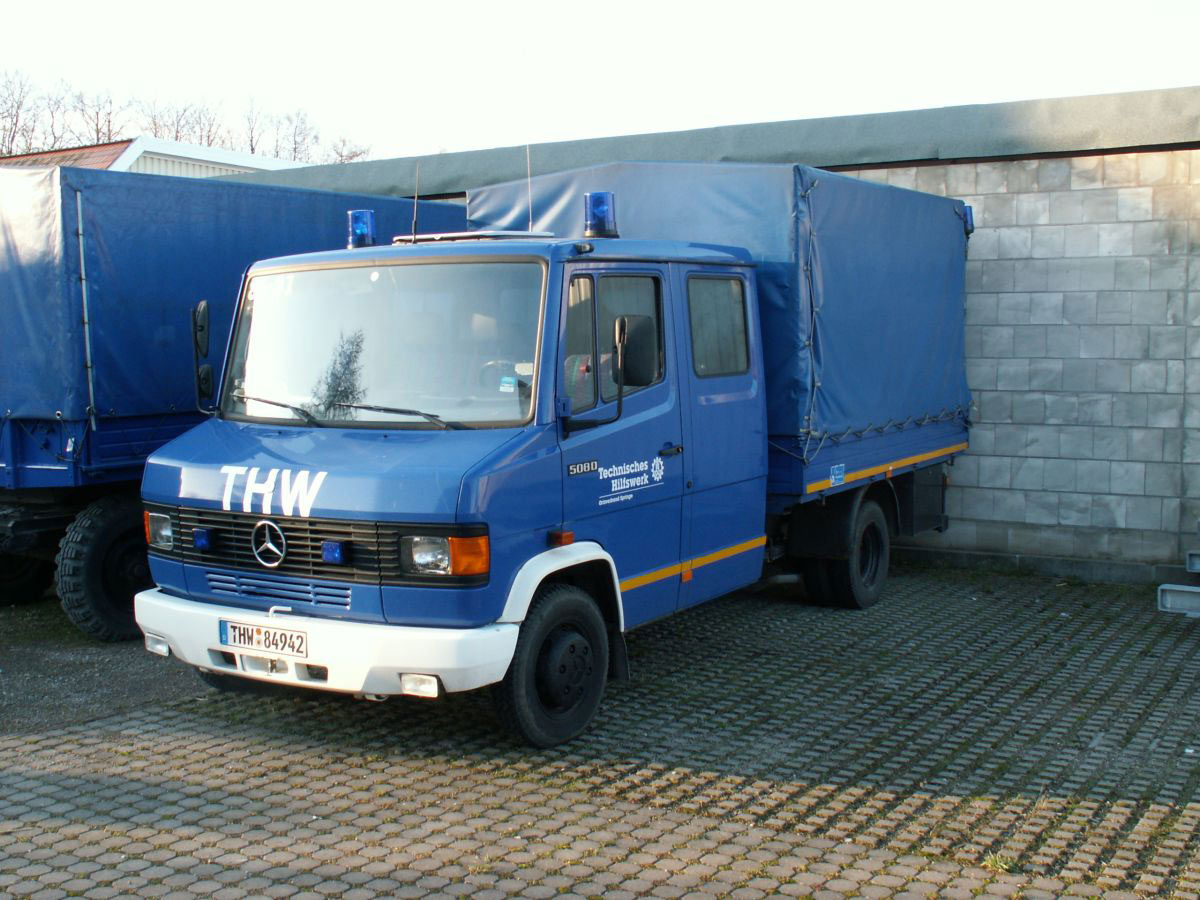

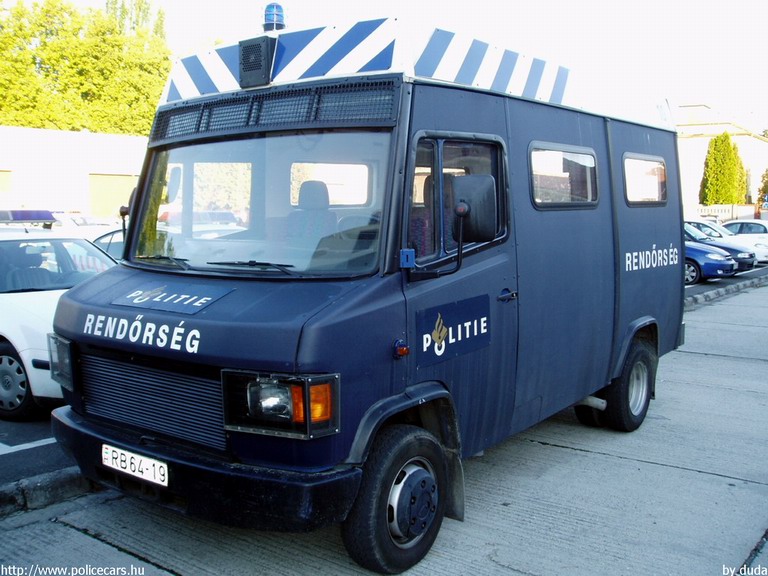

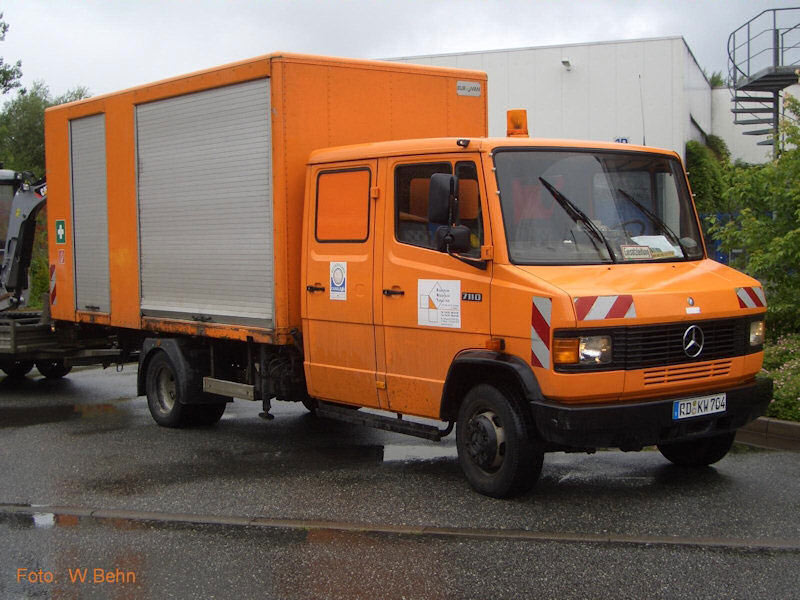

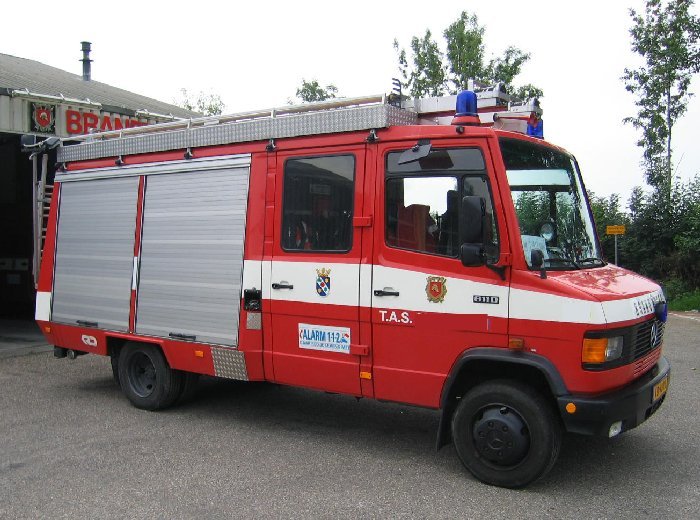

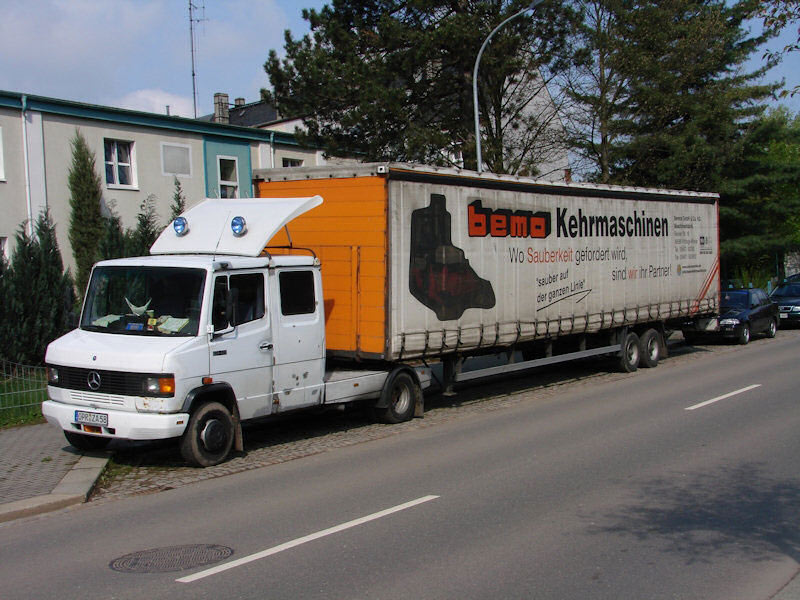

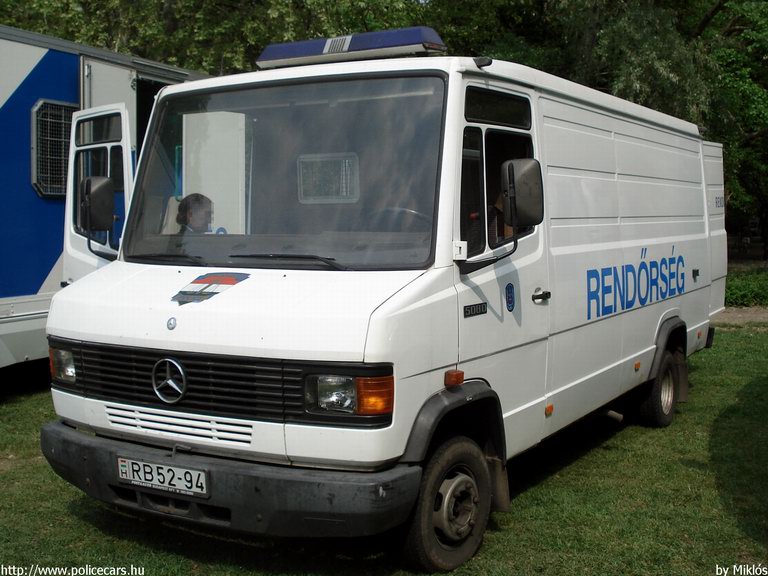

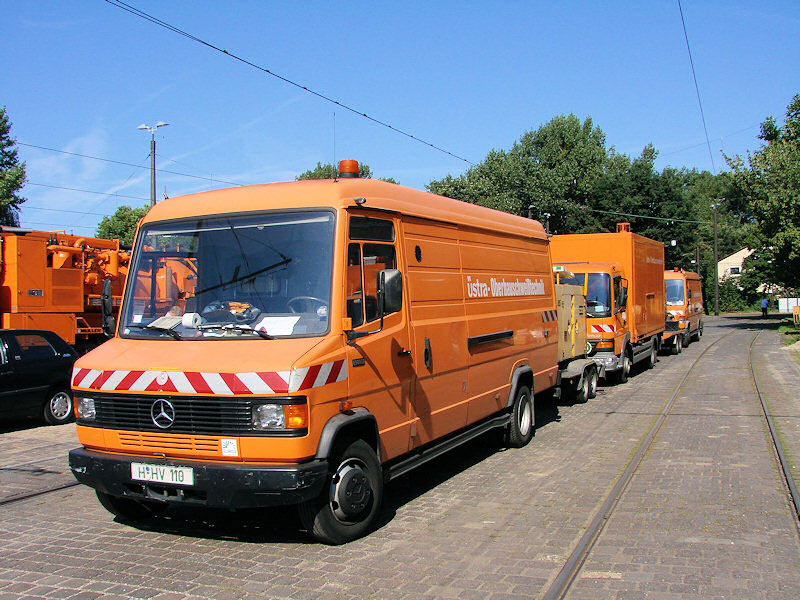

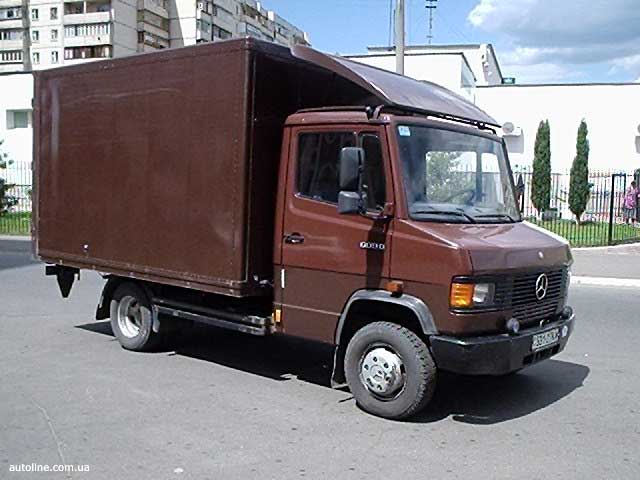

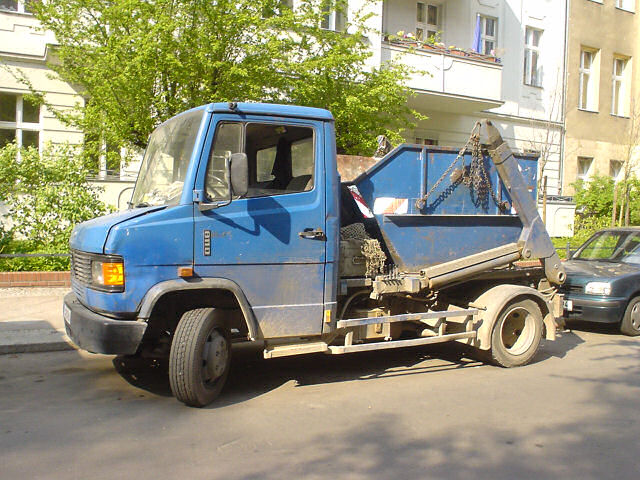

In 1986 a second generation of light Mercedes-Benz trucks - the T2 range has been presented. But the producing of the old T2 range (1968 year) was still continued. So, the old model was called T2 alt (alt - "Old"), and the new T2 neu. The new T2 models received indices 510, 507D, 508D, 511D, 609D, 709D, 711D, 714D, 809D, 811D, 814D. The first digit indicates a rounded total mass in tones. The second and third - horsepower divided by 10. The trucks could be offered in many versions, ranging from a van or bus and ending with a tractor truck. There were not so much choices of engines for the T2 neu model. There was only one gasoline engine - the M102 (2,0 l, 105 hp). The diesel engines are: atmospheric OM601 (2,3 l, 79 hp) and OM364 (3,97 l, 86 hp); and turbocharged OM364 A (3,97 l, 105 hp) and OM364 LA (3,97 l, 105-140 hp). The lst engine has an intercooler and meets Euro 2 standards. All engines are four-cylinder. Models T2 neu usually were equipped with manual 4- or 5-speed transmission. The buses and postal vans were used often hydromechanical gearboxes (models W4 A028 and W4 B 035). Suspension, as well as its predecessor, is on leaf springs. Stabilizer bars are installed in front and rear of the chassis. Brakes are hydraulic type with a vacuum booster. Steering can be with a booster or without it, depending on the modification.

T2 series IIT2 series IIT2 series IIT2 series II
T2 series IIT2 series IIT2 series IIT2 series II
Copyright to policecars.hu
T2 series IIT2 series IIT2 series IIT2 series II
Copyright to www.lkw-infos.eu
T2 series IIT2 series IIT2 series IIT2 series II
T2 series IIT2 series IIT2 series IIT2 series II
Copyright to policecars.huCopyright to autoline.com.uaCopyright to policecars.huCopyright to policecars.hu
T2 series II


709D / 711DT2 3.49-7.49 tons
709D / 711DT2 3.49-7.49 tons
