Khant » MS410

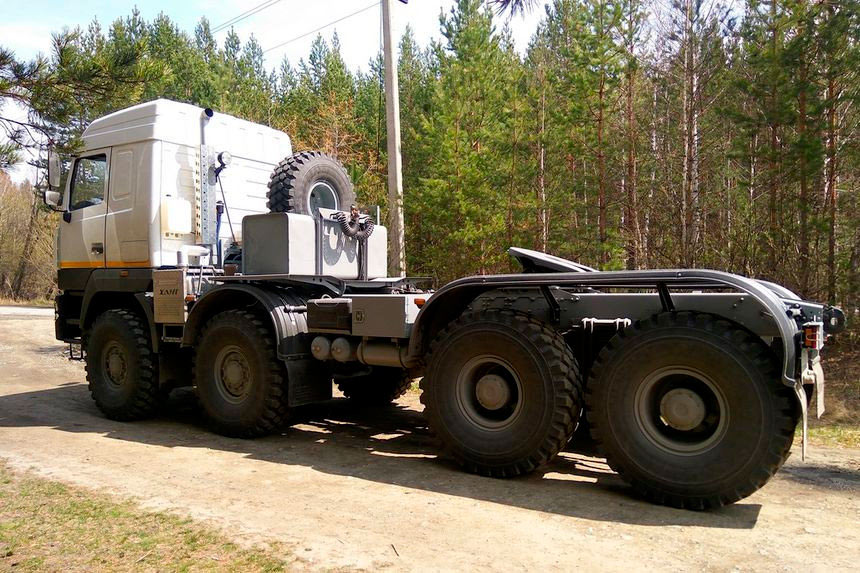

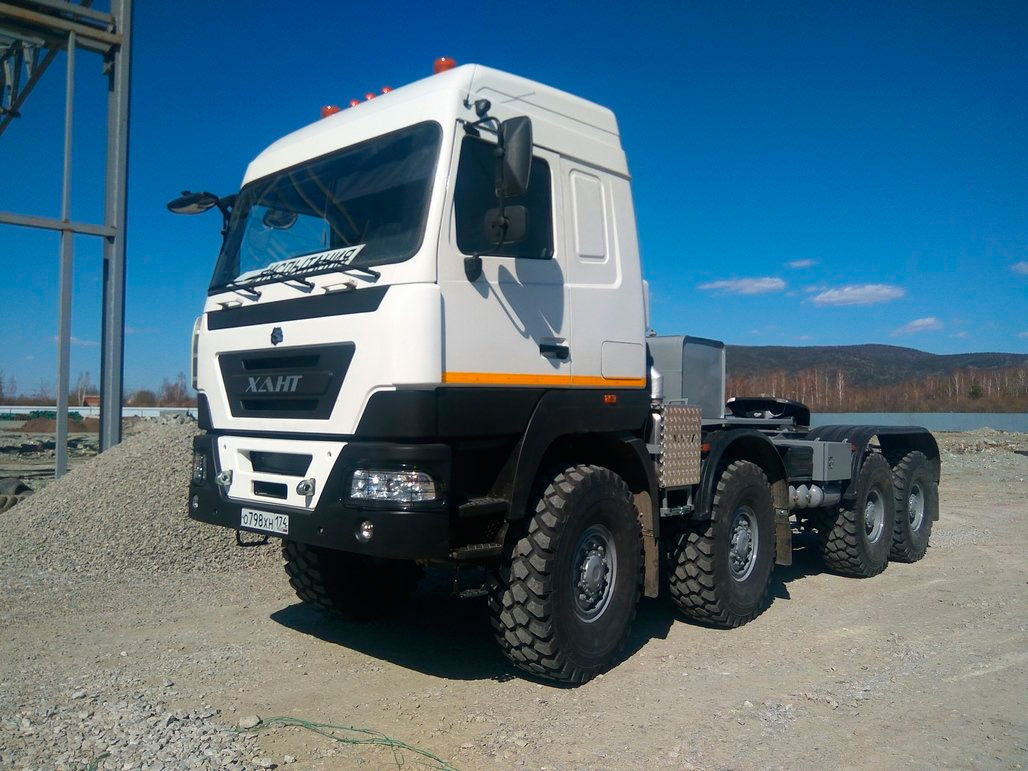

In December 2018, the Plant of Heavy Machines (ZTM) showed a new four-axle all-wheel drive tractor Hunt MS410. The new truck is able to work as part of combinations with a GCVW of up to 50 tonnes, while curb weight is 13.5 tonnes. The operating temperature range is from -45 °C to +45 °C.

Maximum permissible load on the first and second axles is 18 tonnes, and on the rear trolley is 32 tonnes. The axle are Hande (made in China). Permissible load on the fifth wheel coupling is 30 tonnes.

Hunt MS410 is equipped with a 500-hp Weichai WP13.500E501 turbodiesel, which is combined with a 6-speed Xi'an FC 6A250 automatic gearbox and ZQC2000-52Y transfer case. Everything is made in China. The truck has cross-axle differentials of all axles and axle differentials ofr the second and third axels.

The cabin with a high roof and a sleeping compartment was taken from the MAZ 6430 truck, but the fiberglass front mask has own design, similar to the Model 8051S.
