MAZ-MAN » 752559

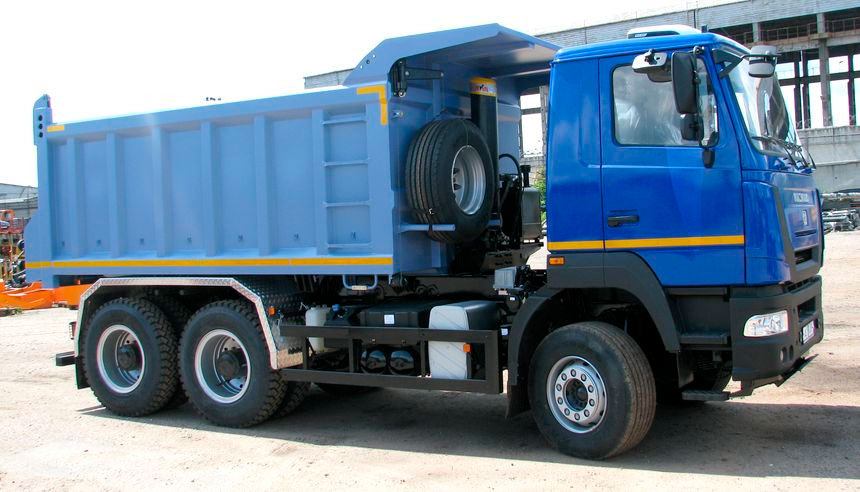

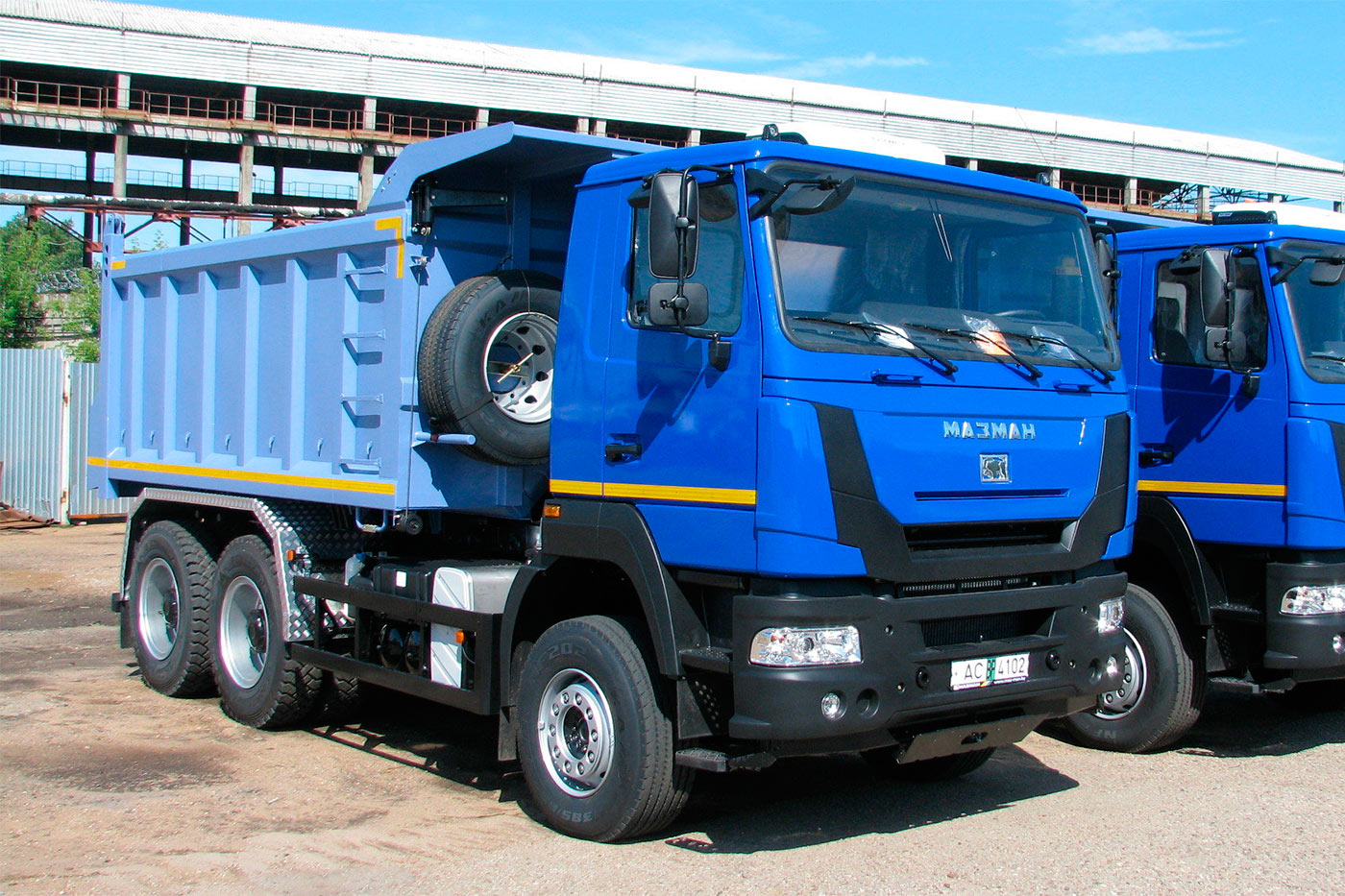

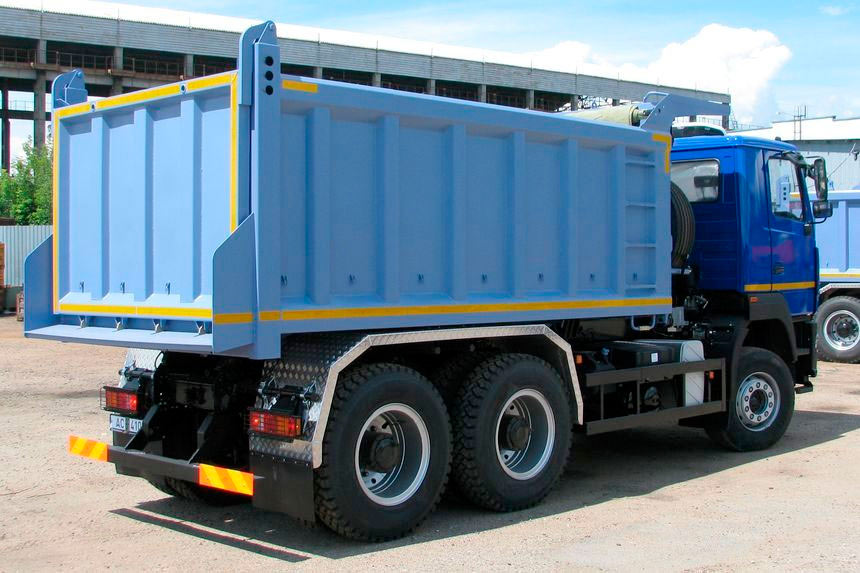

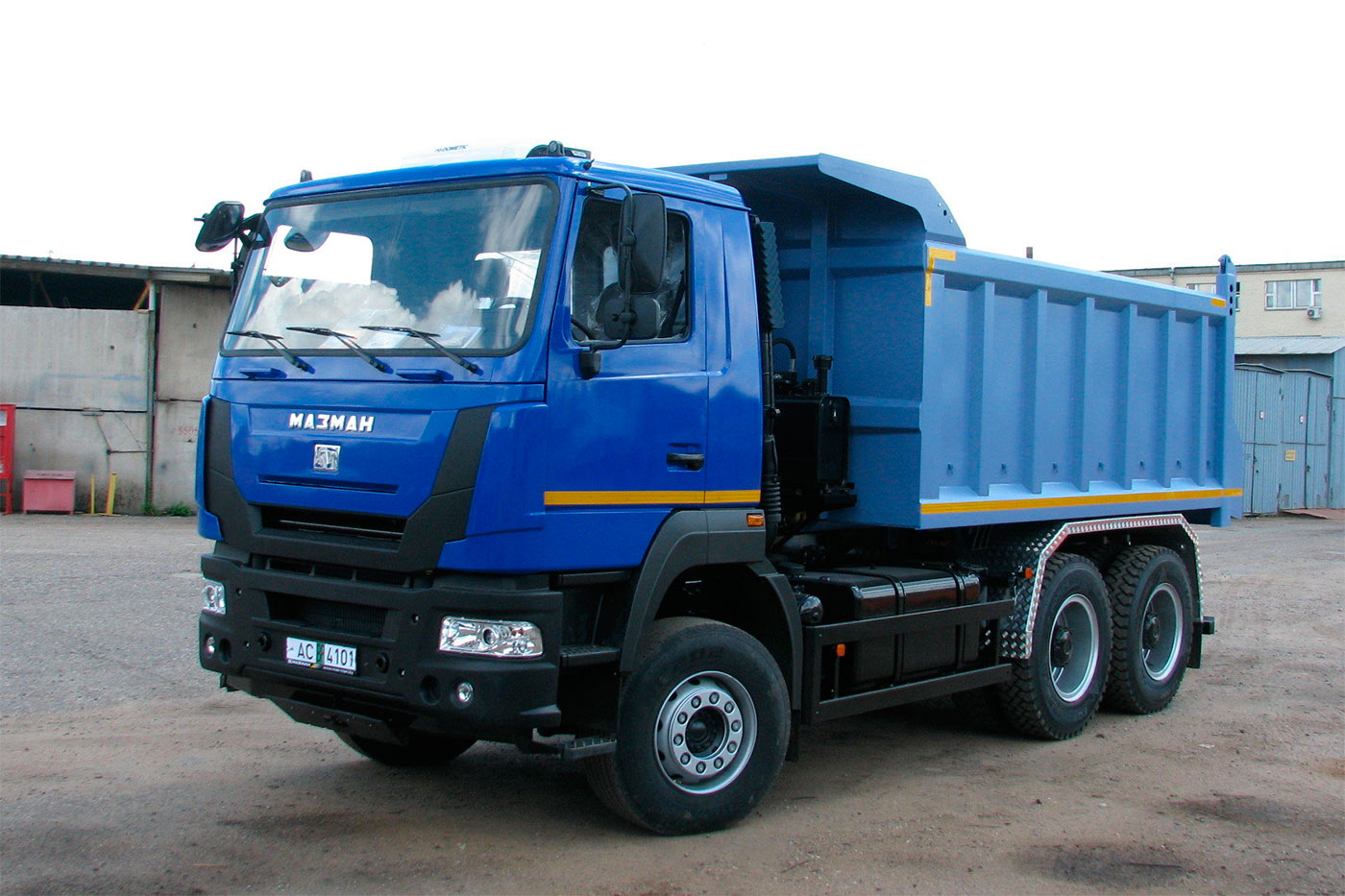

MAZ-MAN 752559 is a new heavy 6x4 dump truck made by the Belarusian-German joint venture. The dump truck with rear unloading has a payload of up to 26 tonnes, while its GVW reaches 41 tonnes.

It is equipped with a German diesel MAN D2066LF44 with a power of 440 hp and a torque of 2100 Nm, which meets the environmental standards of Euro-5. It works in conjunction with a 16-speed manual gearbox ZF 16 S1220 TO. Rear axles have 5-satellite on-board transmissions, inter-wheel and inter-axle locking mechanisms. The front axle is reinforced, with needle bearings in the pivot connection.

Such a big GVW of a single vehicle does not allow it to be used on public roads, so it is intended for work in quarries and on technological roads. At the heart of the design is a particularly sturdy frame with U-shaped side members with reinforcements in the loaded places.

The body has a volume of 16 cubic meters. The platform has a heating system with exhaust gases and a tent to protect the load. The cabin of the MAZ-MAN 752559 is taken from the MAZ-5440 (as well as other models of the company), but has an original front end design.
