MAZ » 547V

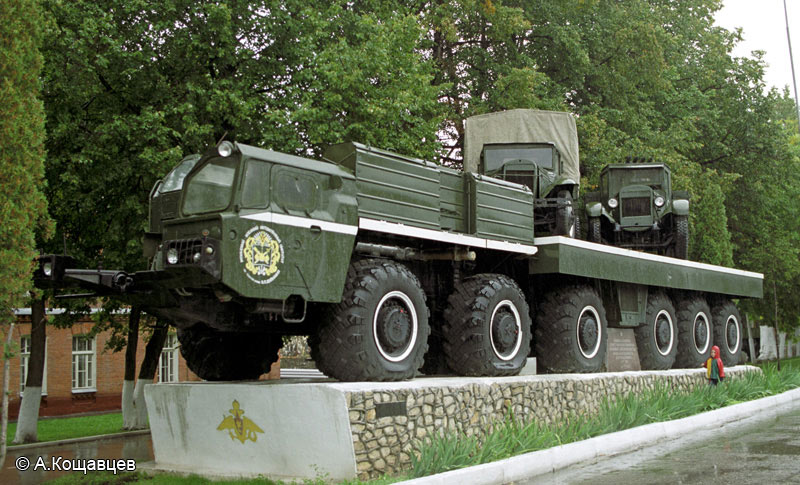

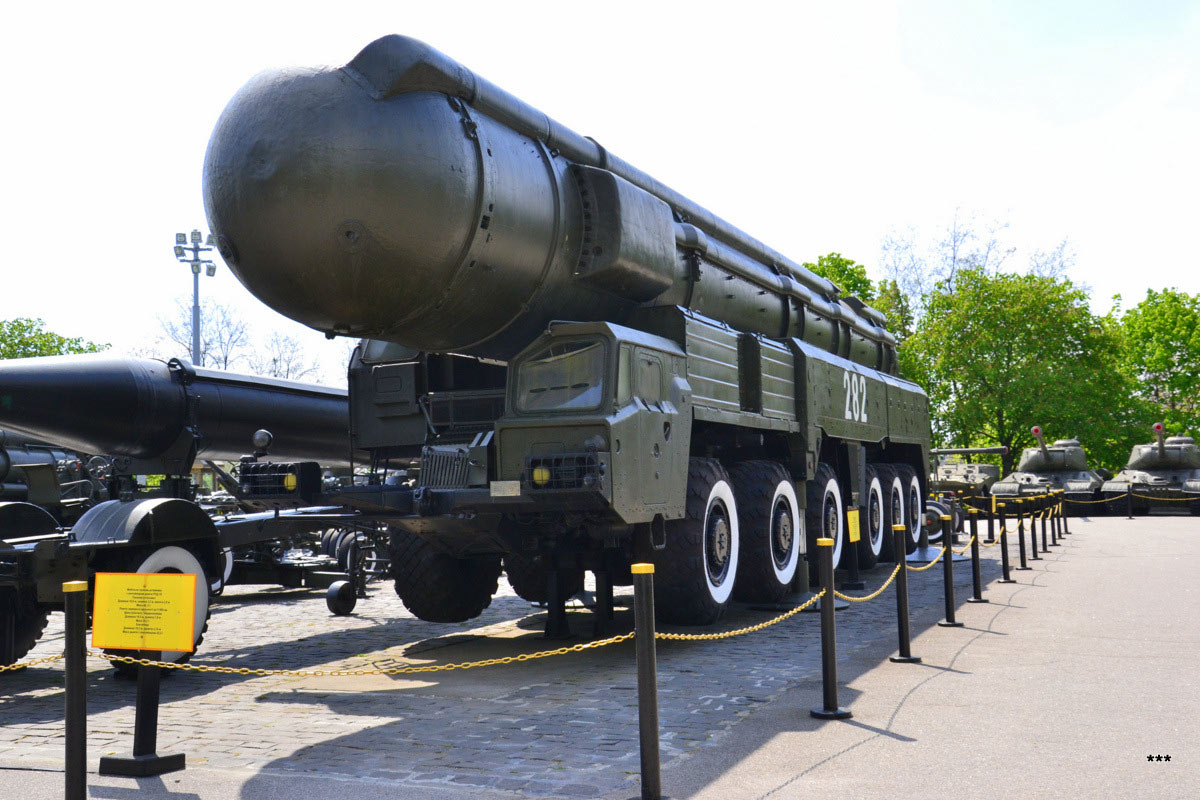

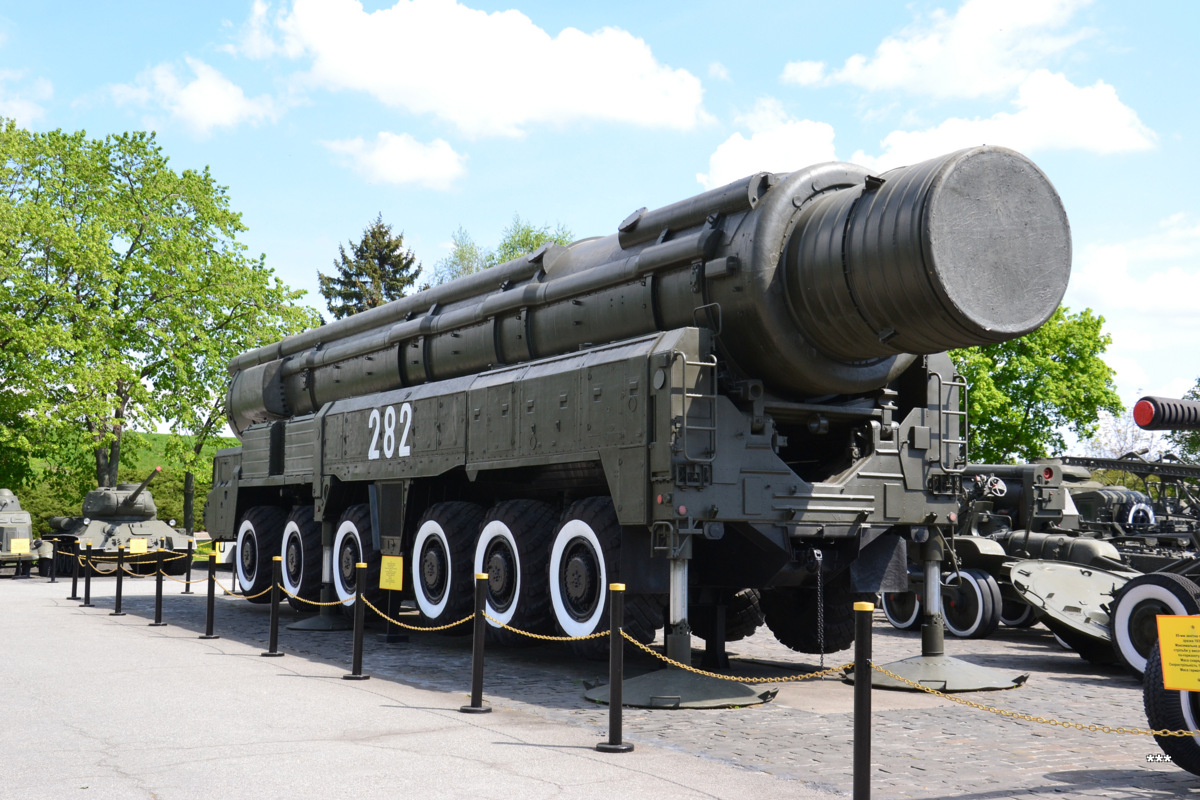

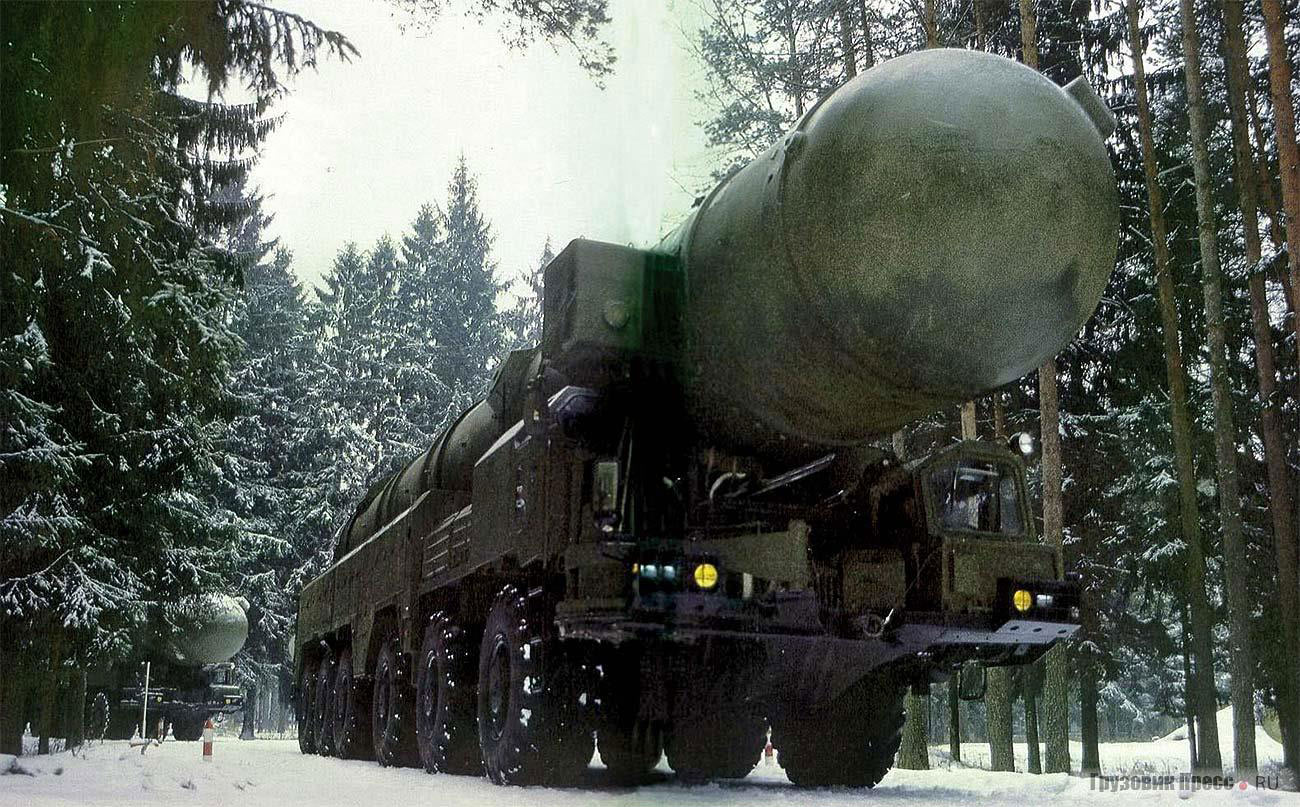

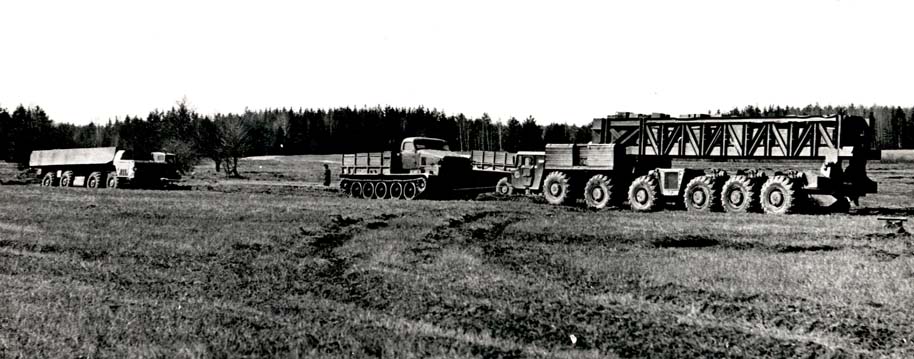

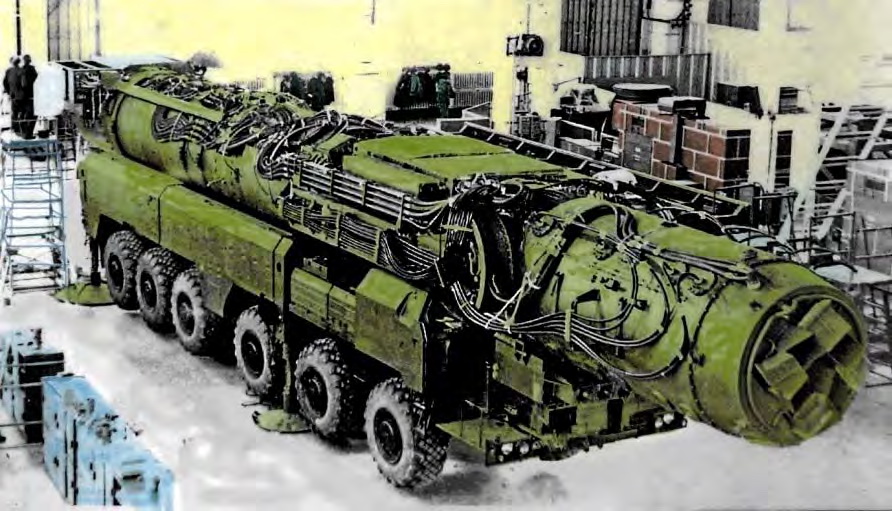

The 55-tonnes MAZ 547V was developed and produced in parallel with the MAZ 547A. Its main purpose is to be a hauler of special equipment of the new missile complex 'Pioneer'. The first two prototypes were made in 1974. The design of the chassis of 547A and 547V was the same, but the second one got a new appearance. The cabin on the right side was shifted back and installed 500 mm higher. It has new design with triangle shaped roof, two small side windows and a ventilation hatch on the front.

MAZ 547V got updated engine injection system and electric equipment. Compares to the 547A, width was reduced by 40 mm (from 3200 to 3160 mm), height was increased to 2840 mm. Fuel tanks capacity — 880 liters, range — 500 km. 538 copies were made till 1984.
