WAW » Aochi V1 / V2 / V3

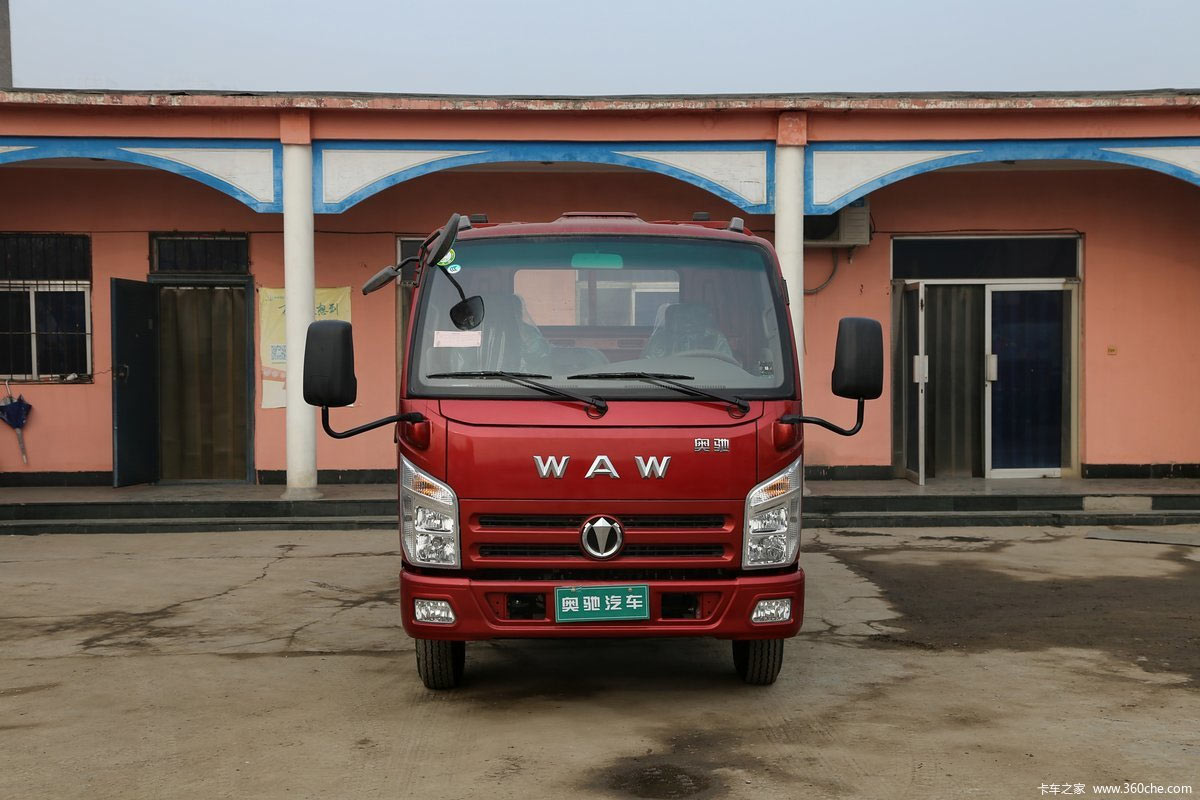

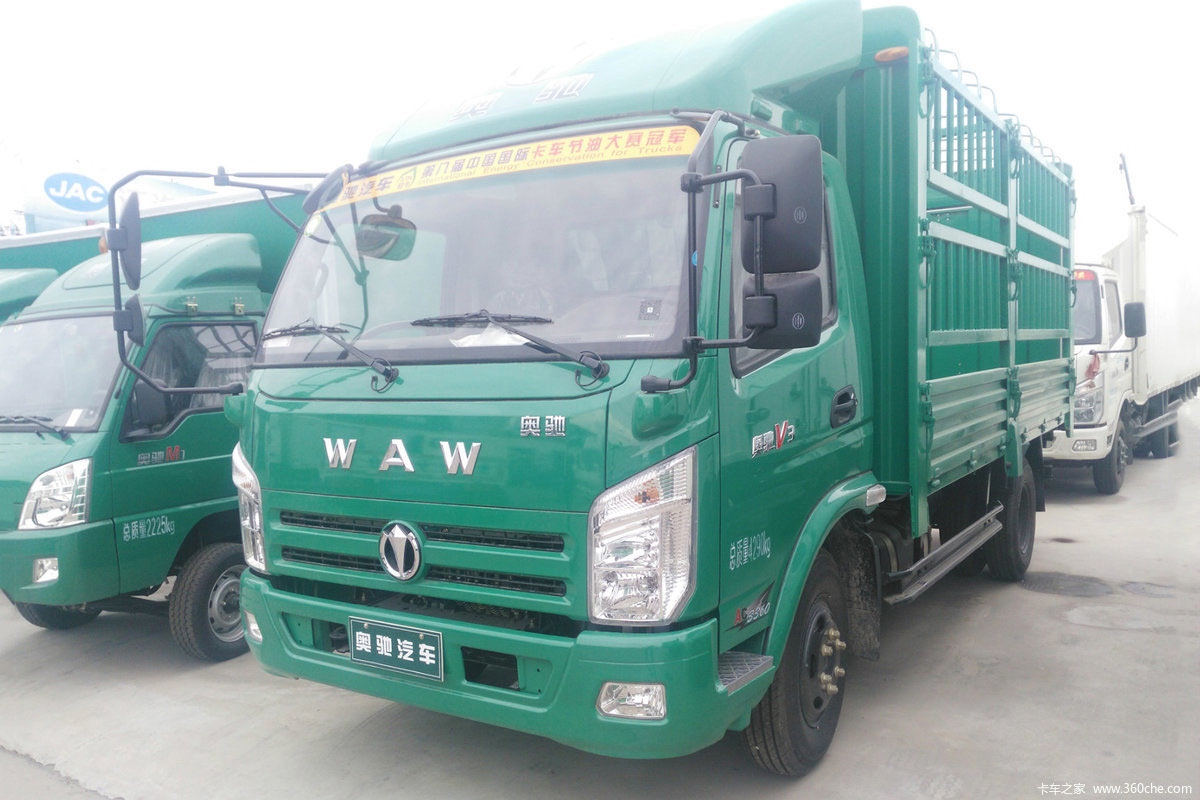

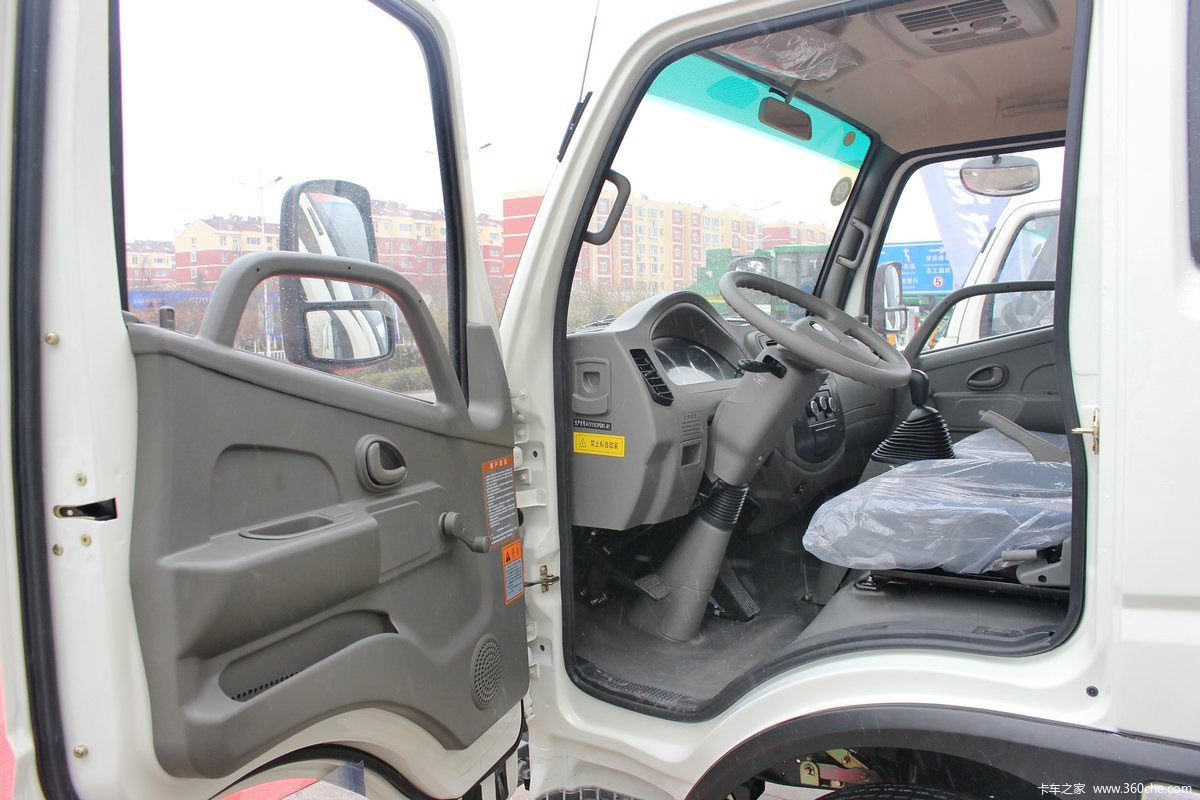

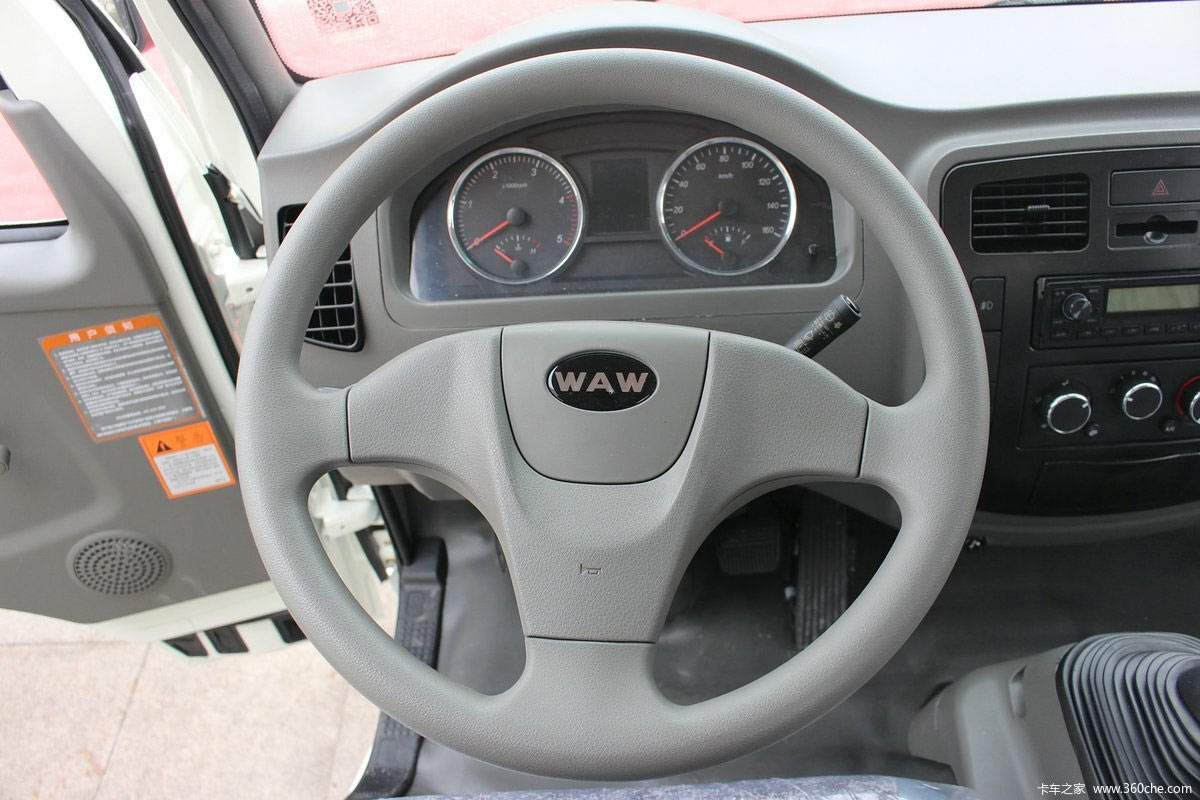

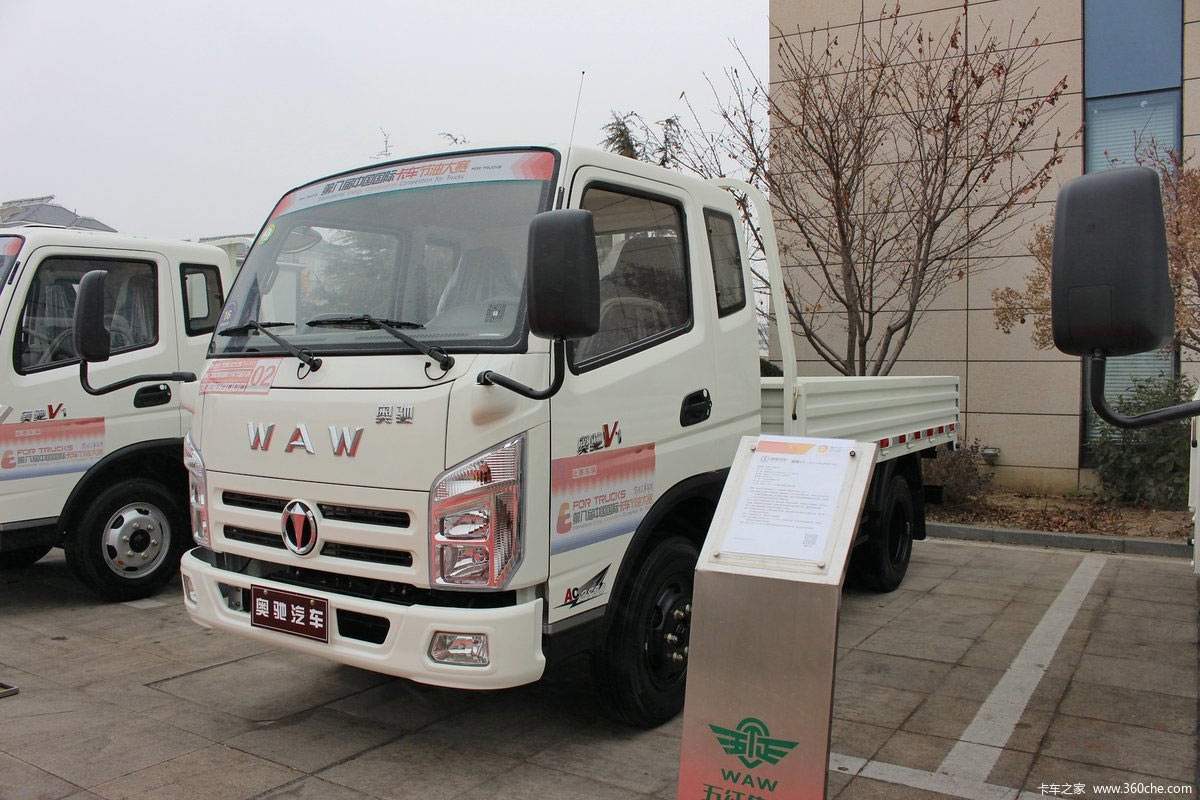

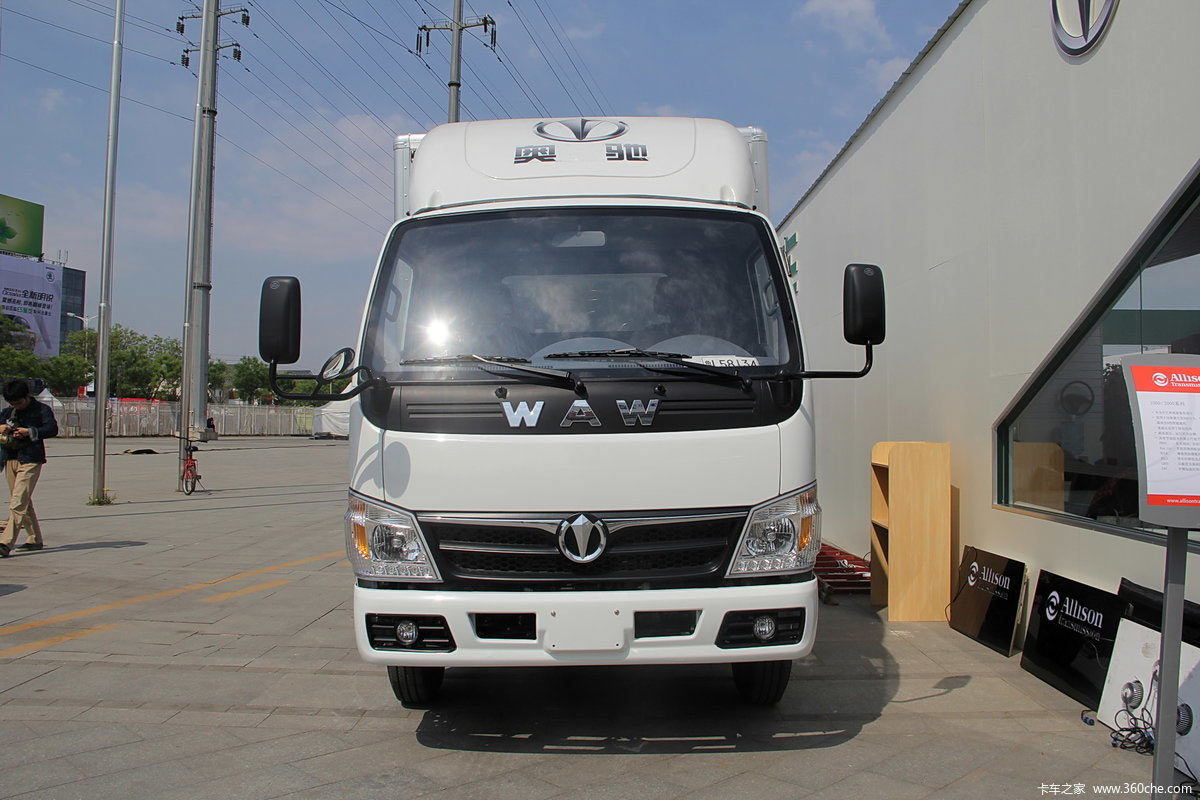

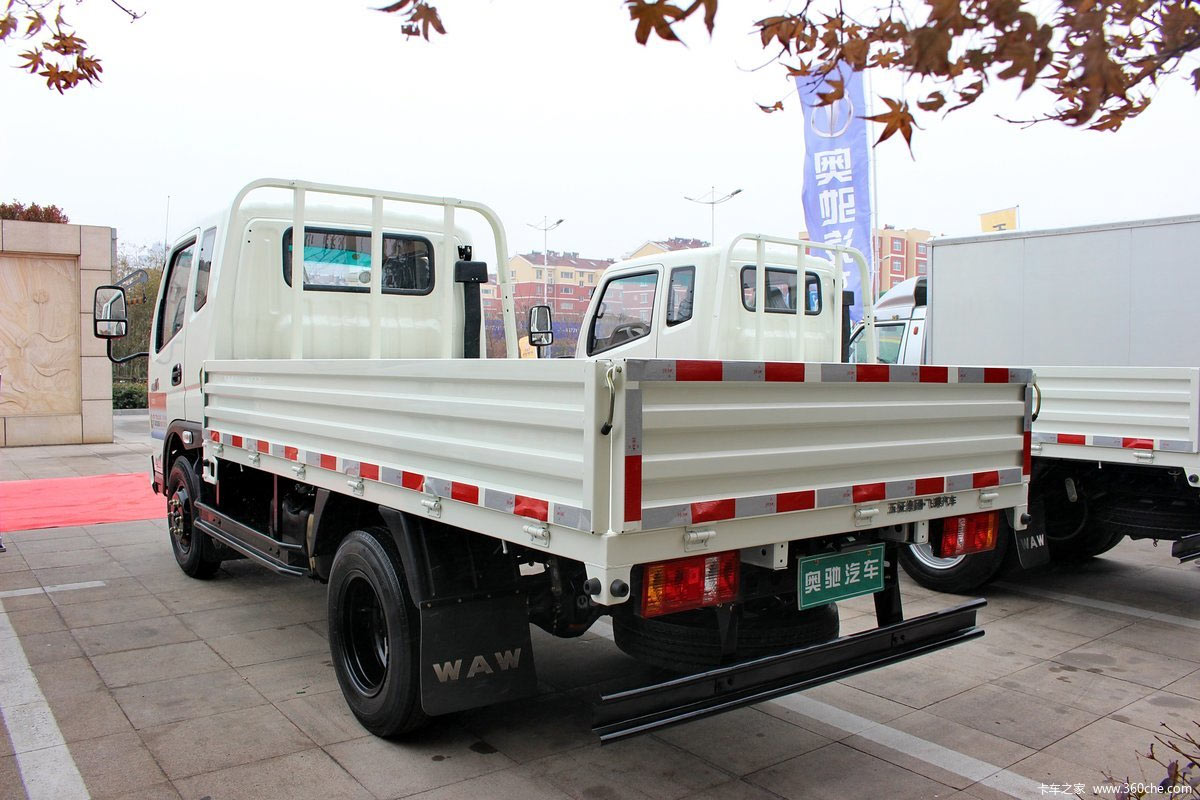

The range of light and medium duty trucjs with a cab-over-the-engine layoute forms Aochi V-range. It includes thre models: Aochi V1, Aochi V2 and Aochi V3. Two exterior design versions are available: with vertical headlights and painted front grille, and with horizontal headlights and black grill (similar to the Aochi D2 / D3). A daycab and sleeper cab is available.

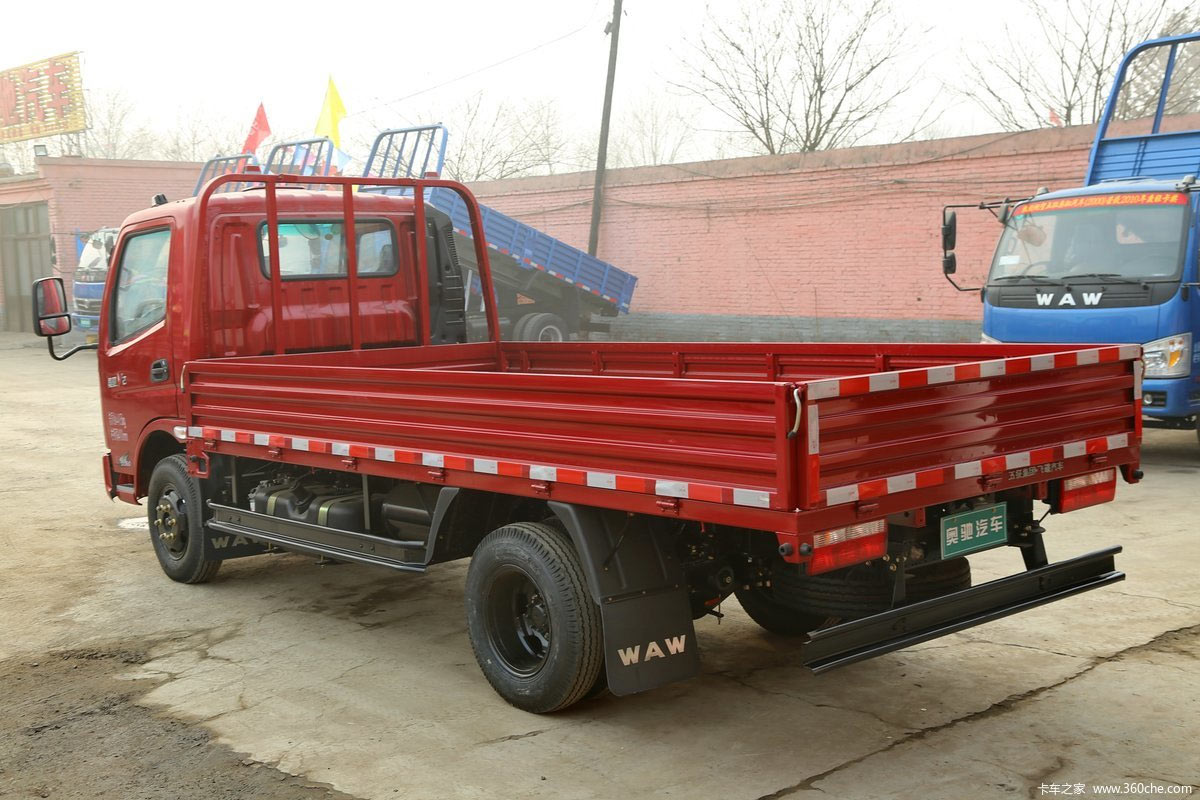

Aochi V1 with a payload of 2 tonnes and GVW of 4.2 tonnes is equipped with a 2.1-liter 4-cylinder 82 hp Yang Chai YZ4DC1-40 diesel. Gearbox - manual, 5-speed Starry Swiss 5A26. Wheelbase - 2850 mm. Overall dimensions - 5470x1900x2260 mm. Top speed - 100 kph.

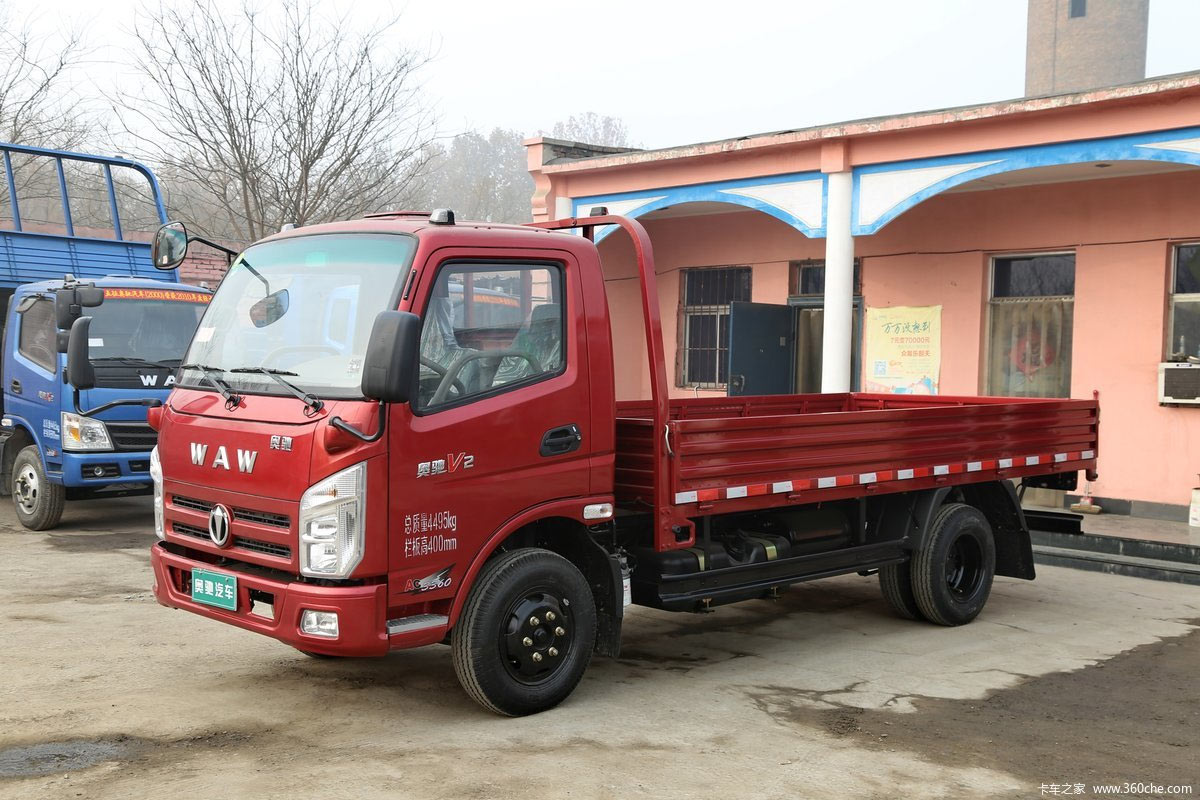

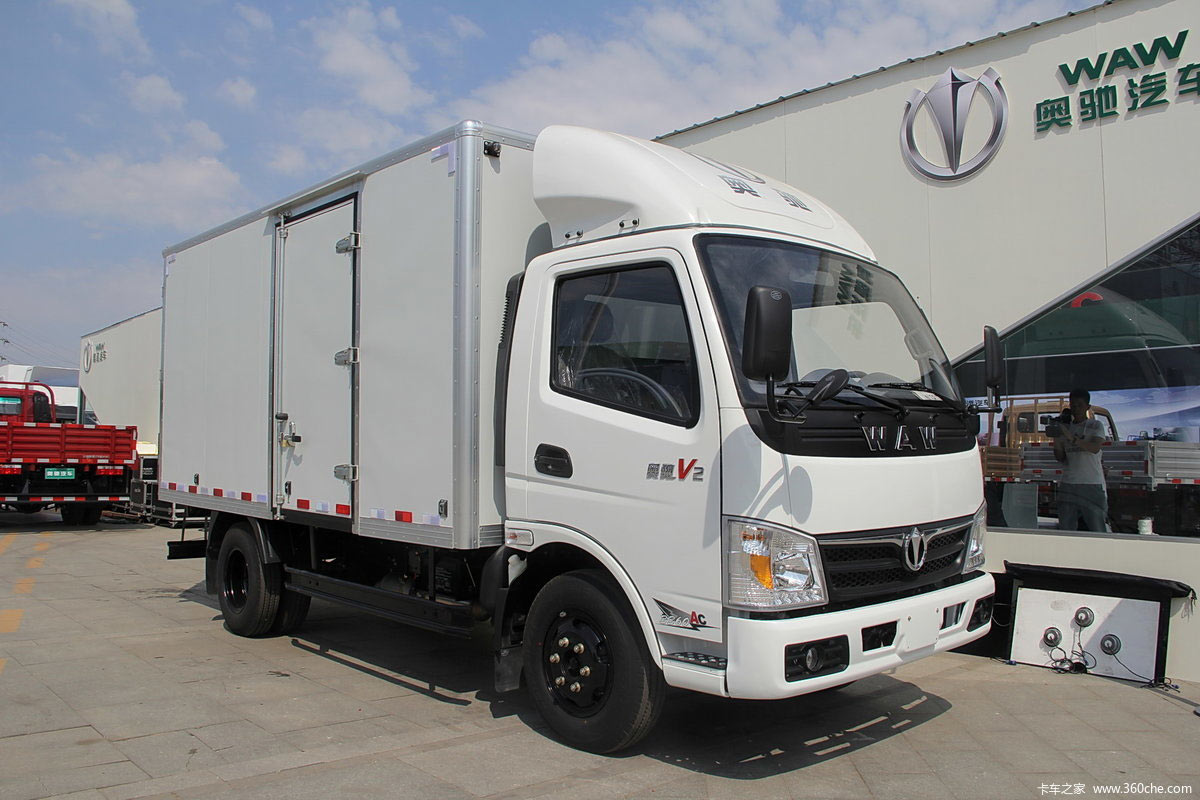

Aochi V2 with the same payload got a wider cab. Overall dimensions - 6000x2210x2400 mm. The engine is 95 hp 4-cylinder 2.7-liter Cloud Power YN27CR diesel. Torque - 250 Nm. Gearbox - 5-speed, manual. Top speed - 95 kph.

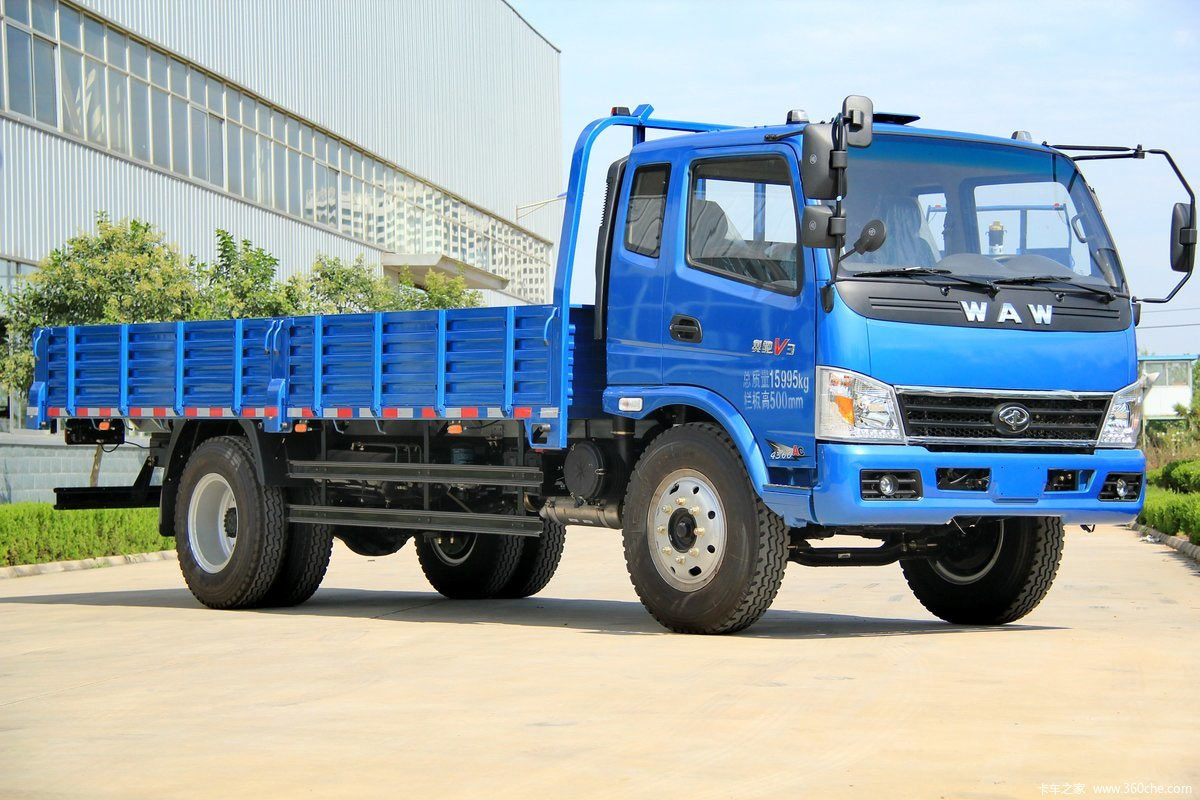

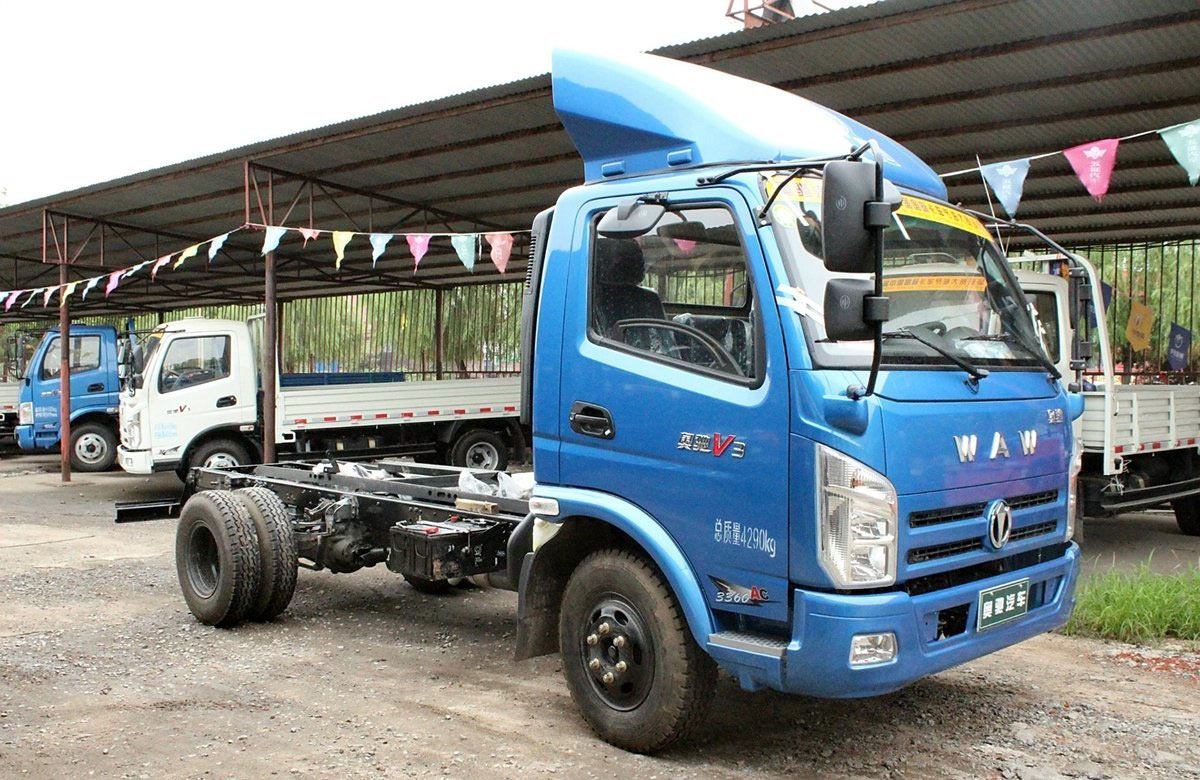

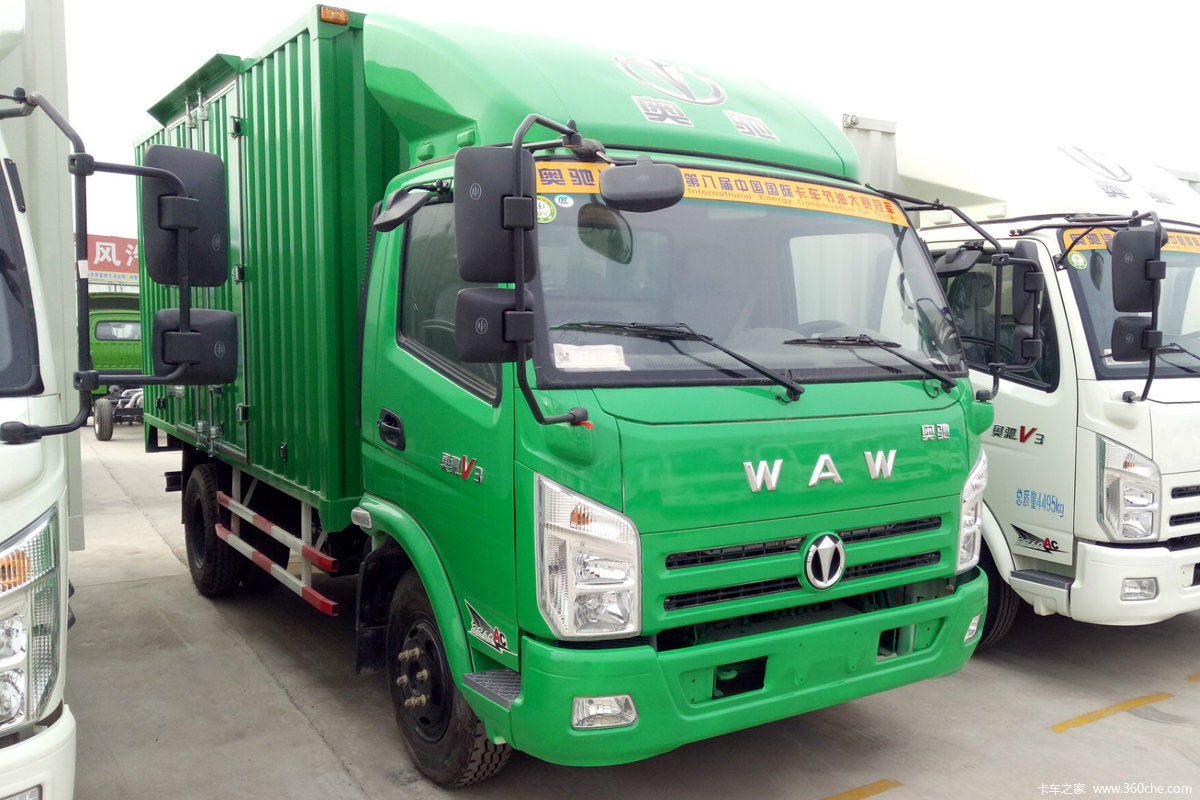

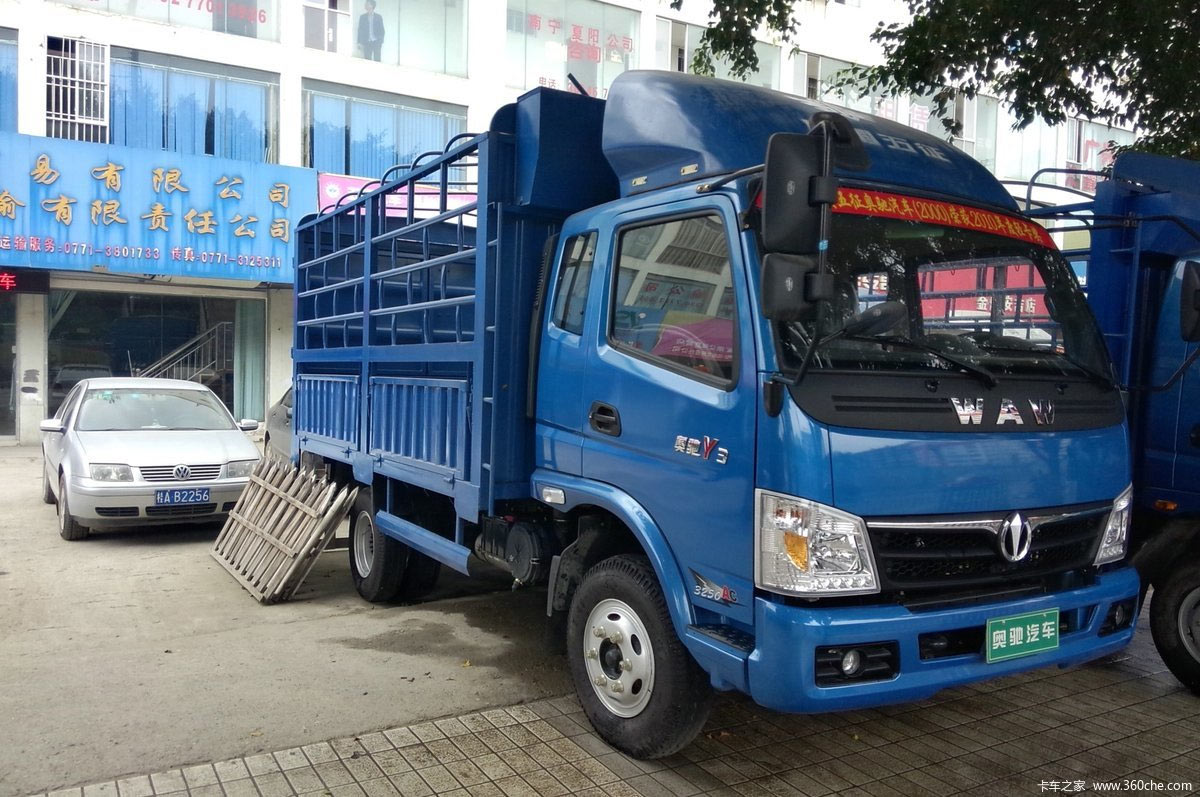

Aochi V3 with a payload from 2 to 8 tonnes and GVW up to 16 tonnes is fitted with a 3-liter 115 hp Yuchai diesel, 3.2-liter 124 hp Large Chai diesel, 3.7-liter 130 hp Yang Chai diesel, 3.9-liter 120 hp Xichai diesel and 3.3-liter 102 hp Cloud Power diesel. Gearbox - manual, 5- or 6-speed.

Aochi V1 / V2 / V3Aochi V1 / V2 / V3Aochi V1 / V2 / V3Aochi V1 / V2 / V3
WAW Aochi V1WAW Aochi V1WAW Aochi V1WAW Aochi V1
Aochi V1 / V2 / V3Aochi V1 / V2 / V3Aochi V1 / V2 / V3Aochi V1 / V2 / V3
WAW Aochi V2WAW Aochi V2WAW Aochi V2WAW Aochi V2
Aochi V1 / V2 / V3Aochi V1 / V2 / V3Aochi V1 / V2 / V3Aochi V1 / V2 / V3
WAW Aochi V2WAW Aochi V2WAW Aochi V2WAW Aochi V2
Aochi V1 / V2 / V3Aochi V1 / V2 / V3Aochi V1 / V2 / V3Aochi V1 / V2 / V3
WAW Aochi V3WAW Aochi V3WAW Aochi V3WAW Aochi V3
Aochi V1 / V2 / V3
WAW Aochi V3
