BAZ » 930 / 931

In 1961 BAZ presented its first own model - a four-axle 10 tonnes flatbed truck BAZ-930 (8x8). The prototype was built on a ZIL-135 chassis and had a welded frame, two petrol engines ZIL-375 rated at 180 hp each, independent suspension of all wheels and extreme wide tires 1200x500-508. BAZ 930 got an experimental automatic hydromechanical transmission, created by NAMI for "Ural-375" truck. The cabin with three windshields, front dash and some other parts were made of fiberglass. The tests of BAZ-930 took place on October 19. A lot of defects were found during these tests, while the worstest unit was the geatbox.

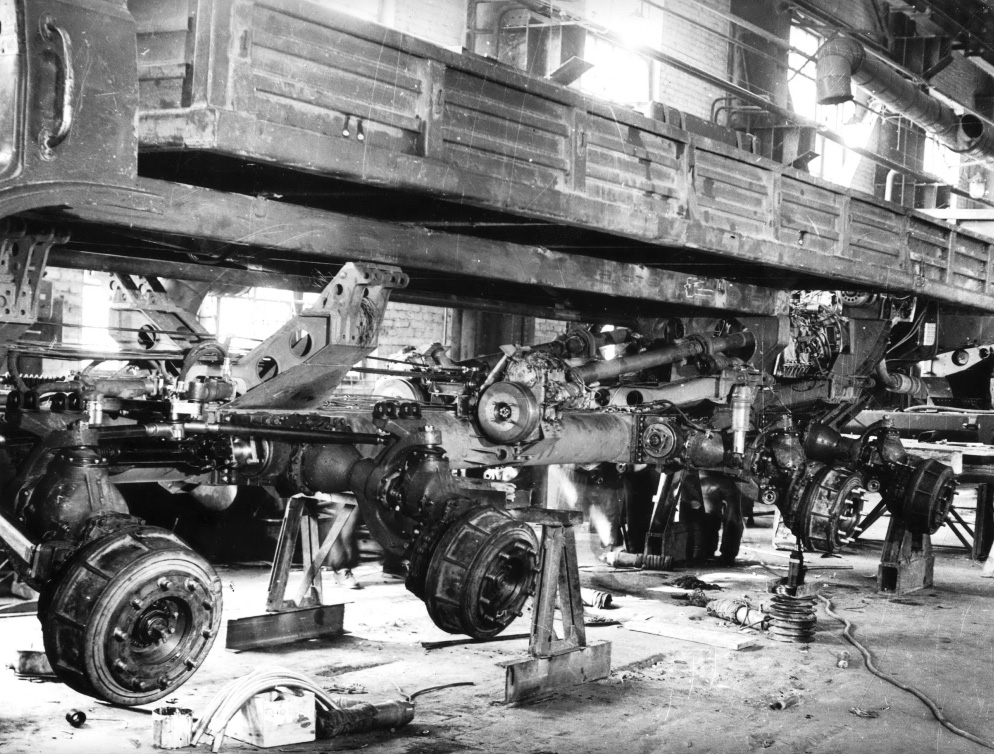

In 1962, a long wheelbase version BAZ-931 was built. In fact BAZ-931 was an entirely new design with a cabin of the BAZ 930 and spaced pairs of front and rear axles. It was equipped with a tubular central frame onboard power transmission system and an independent hydropneumatic suspension with units of MIG 15 jet fighter. BAZ 931 was not good and did not pass the tests.

930 / 931930 / 931930 / 931930 / 931

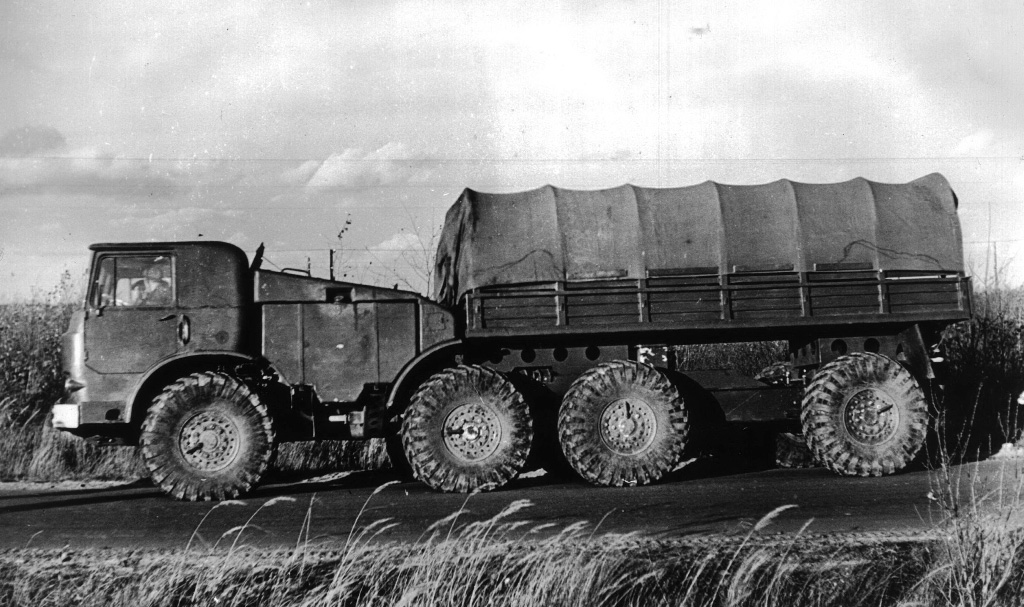

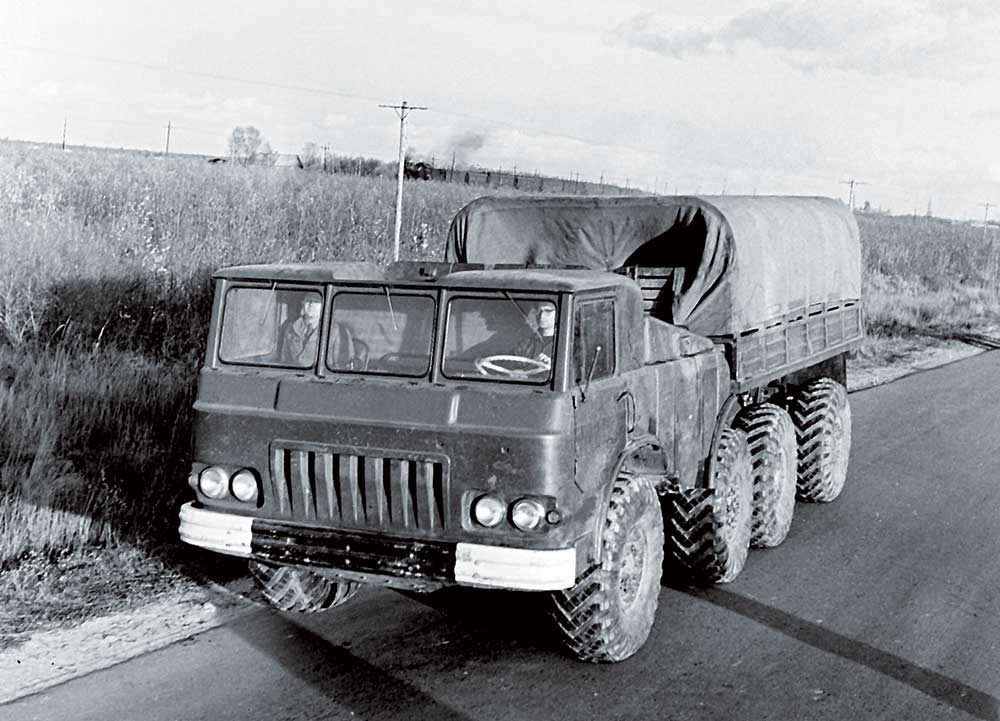

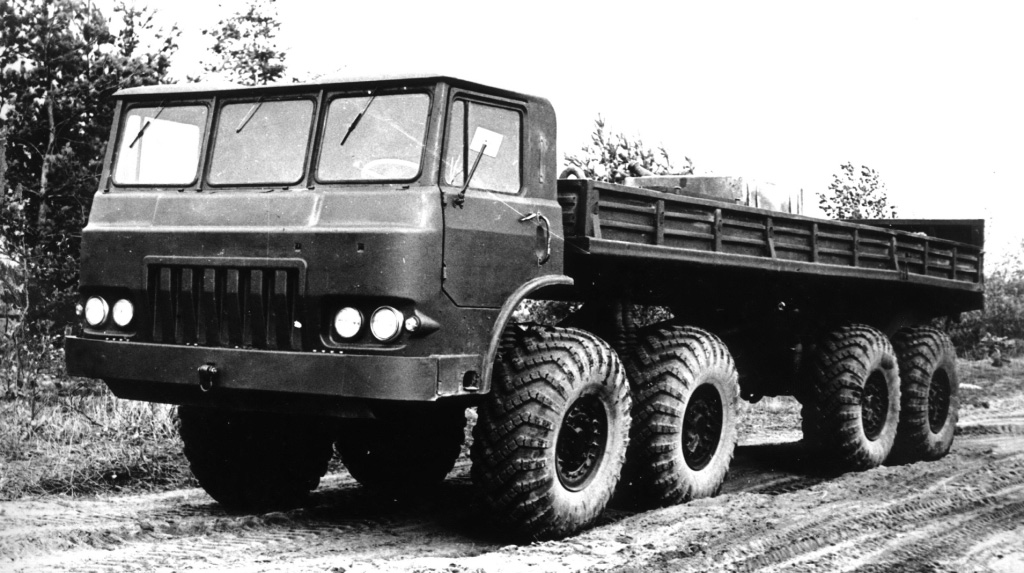

BAZ-930BAZ-930BAZ-931BAZ-931
