KrAZ » Shrek One

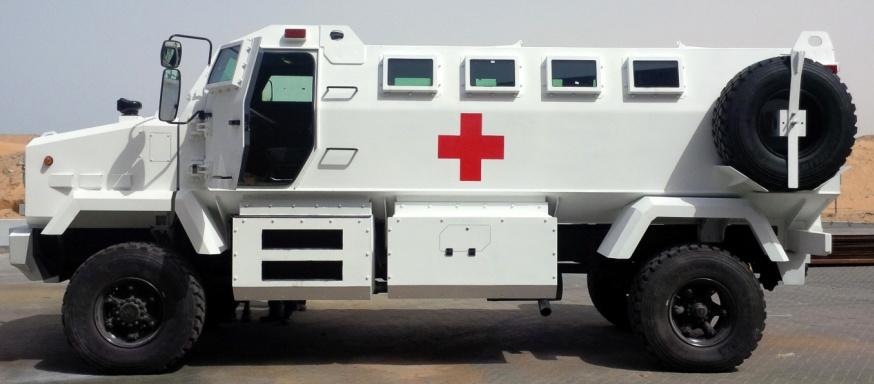

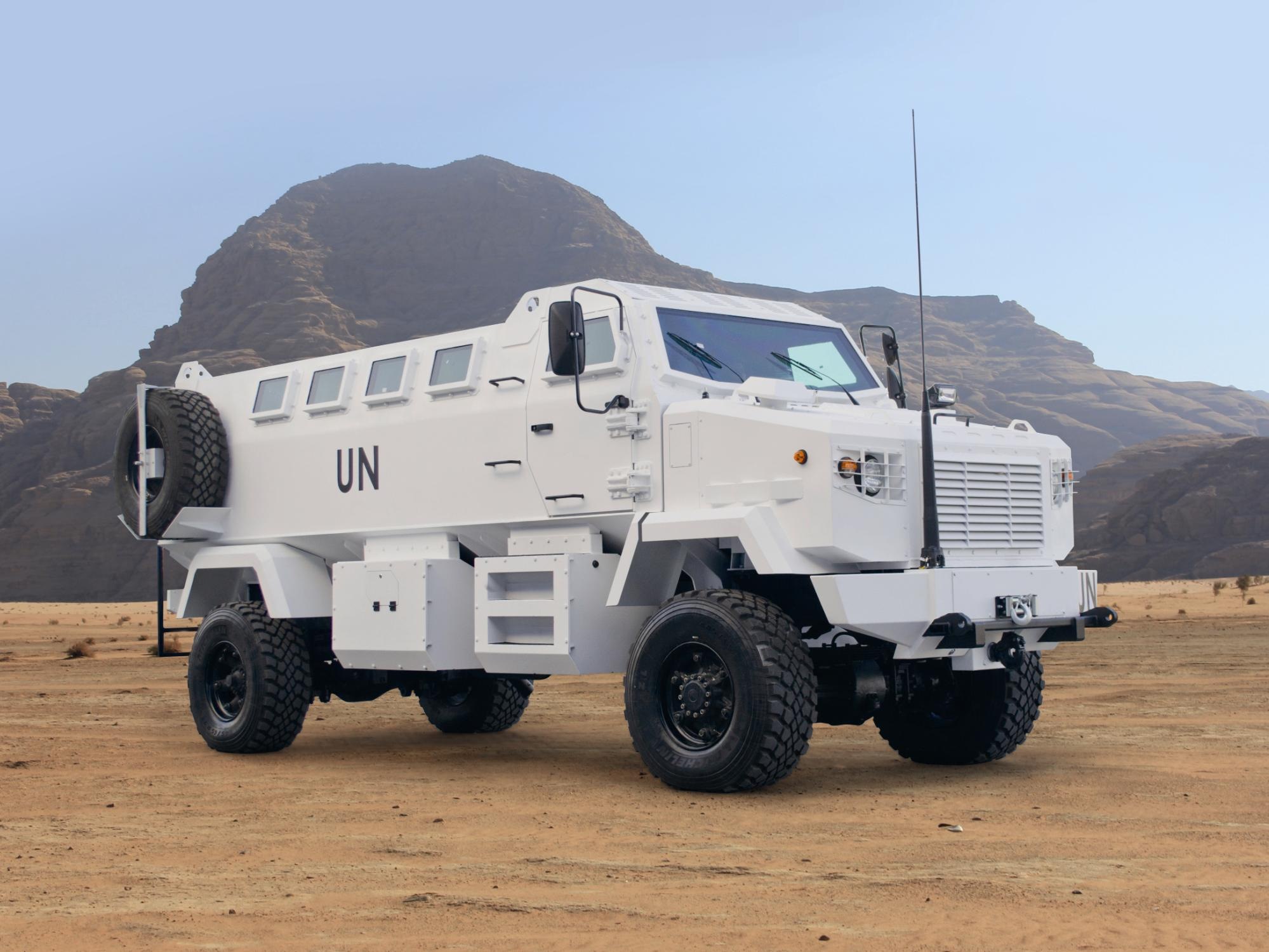

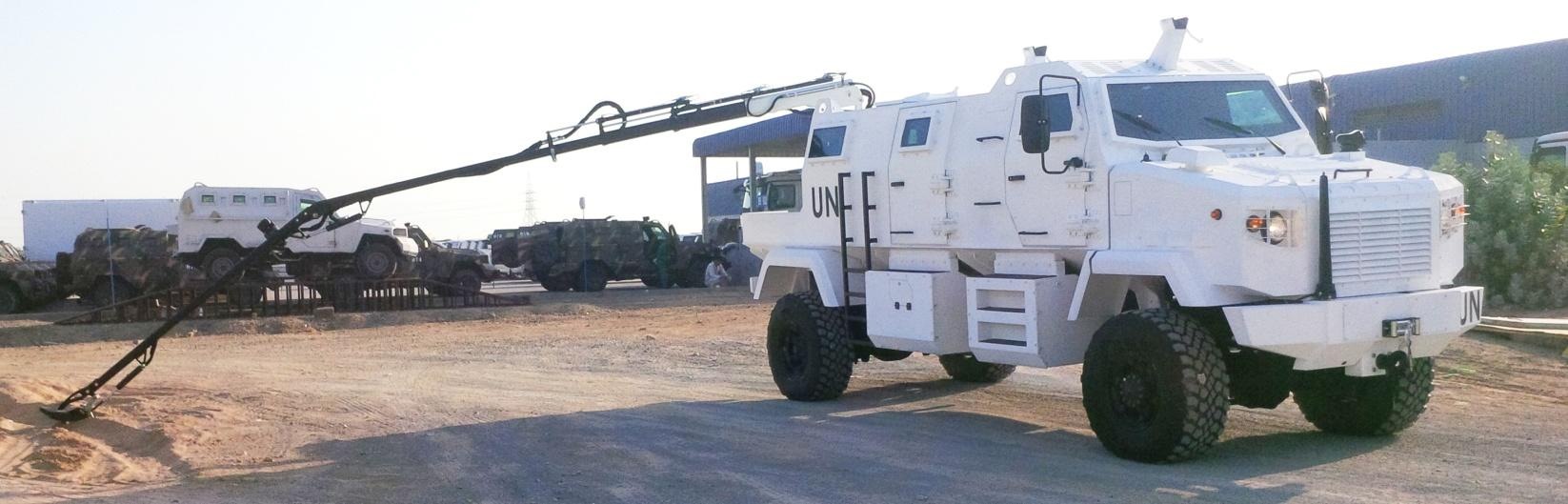

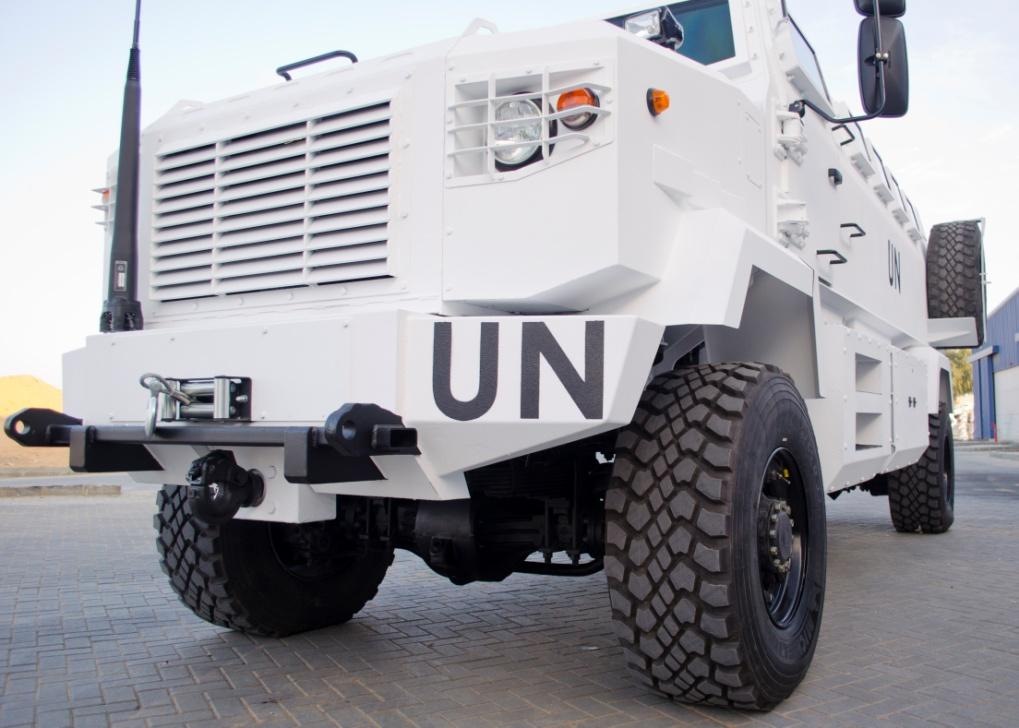

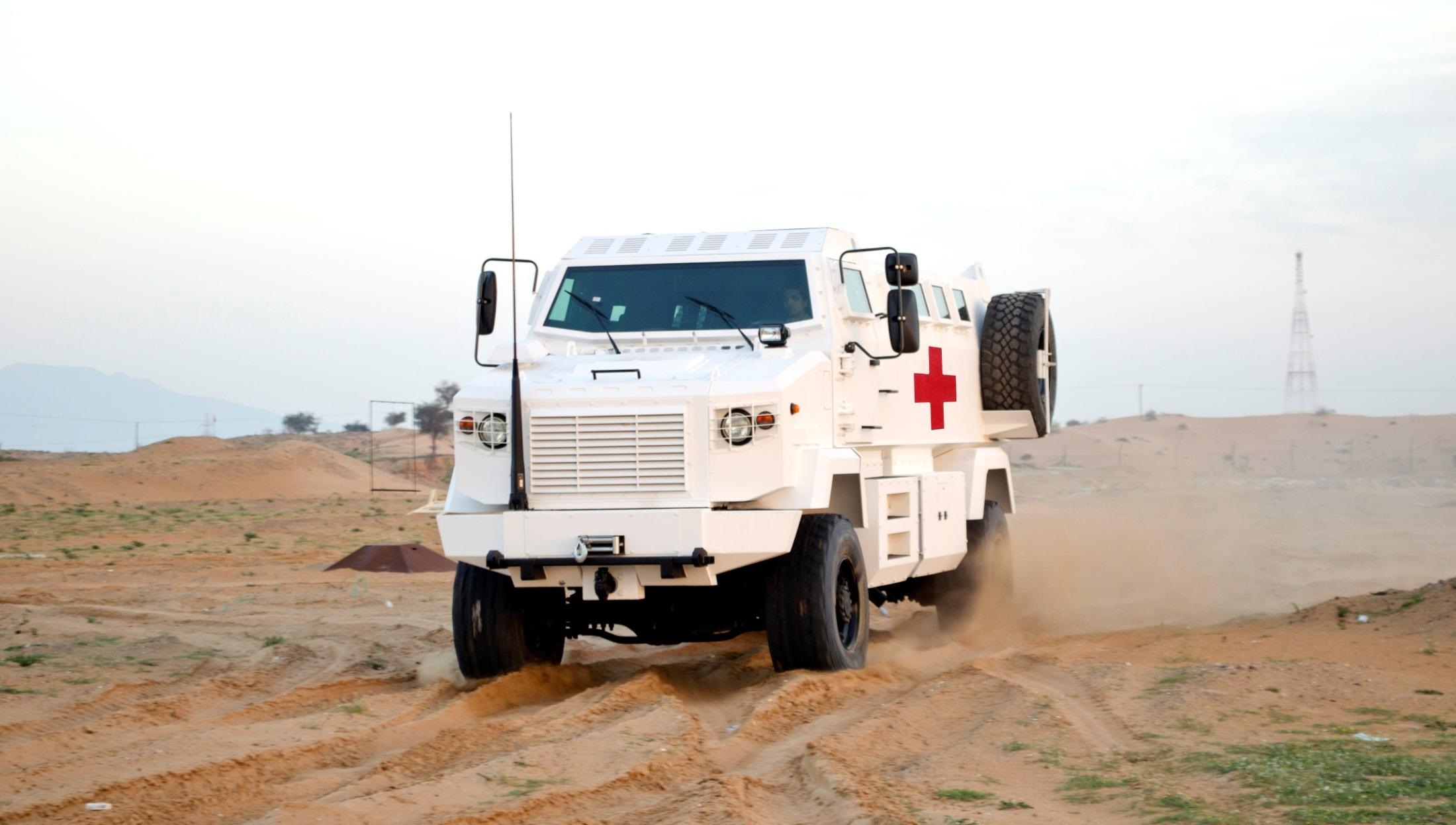

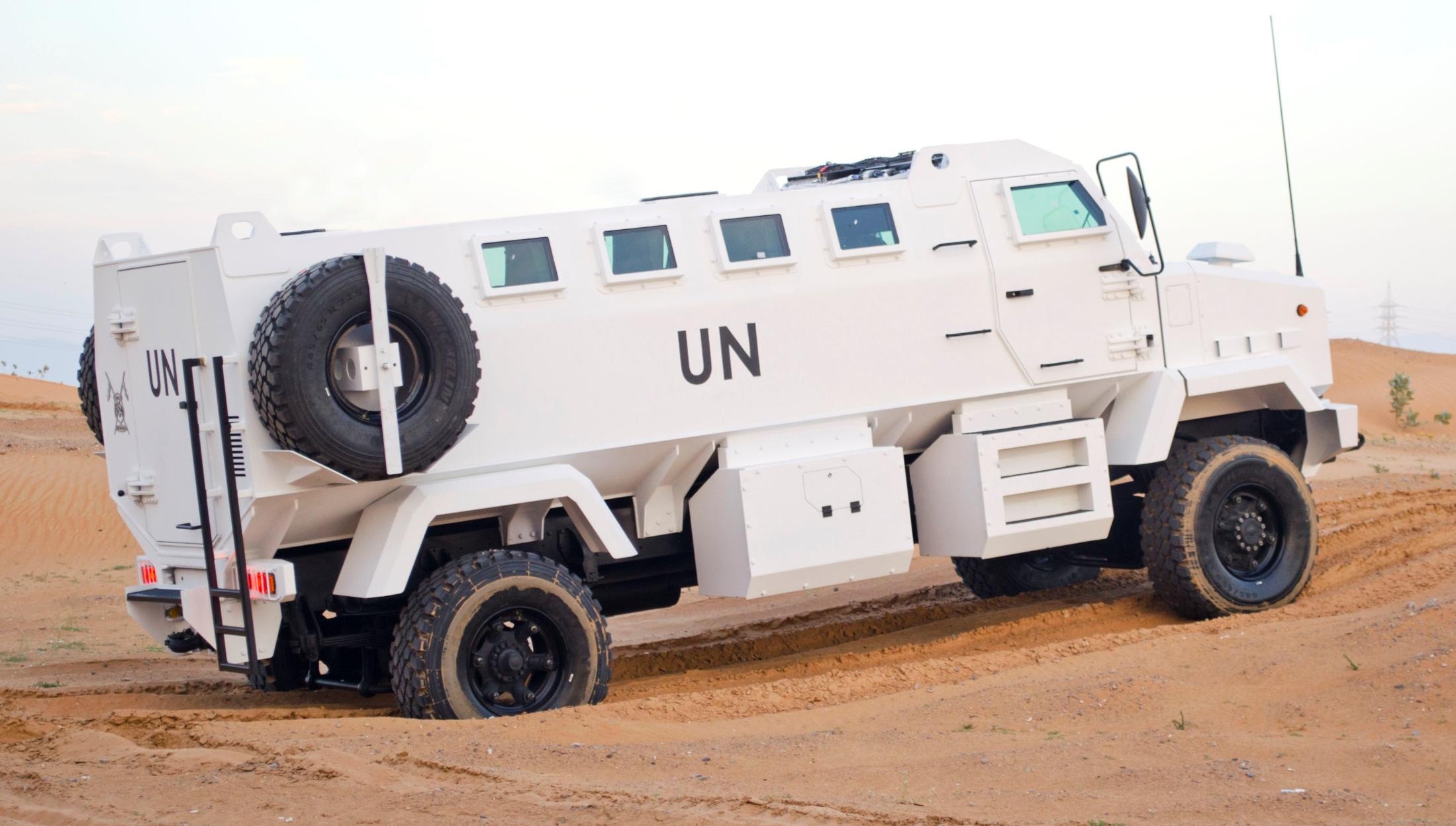

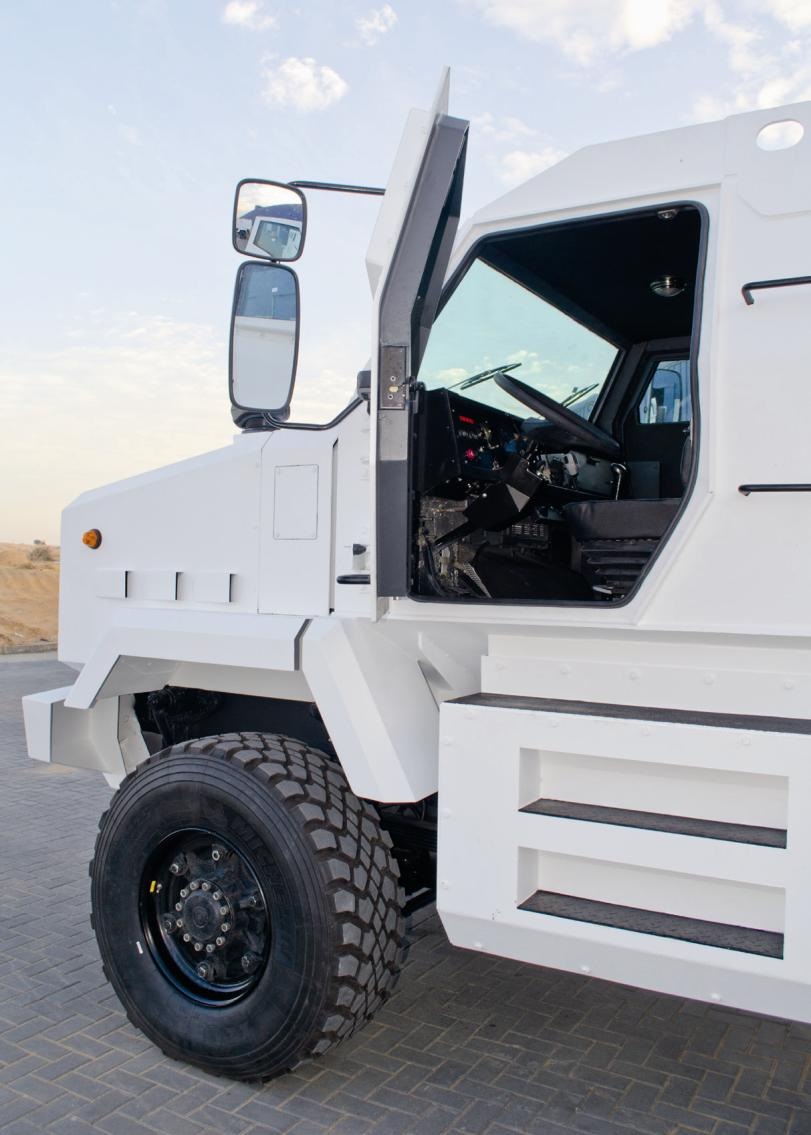

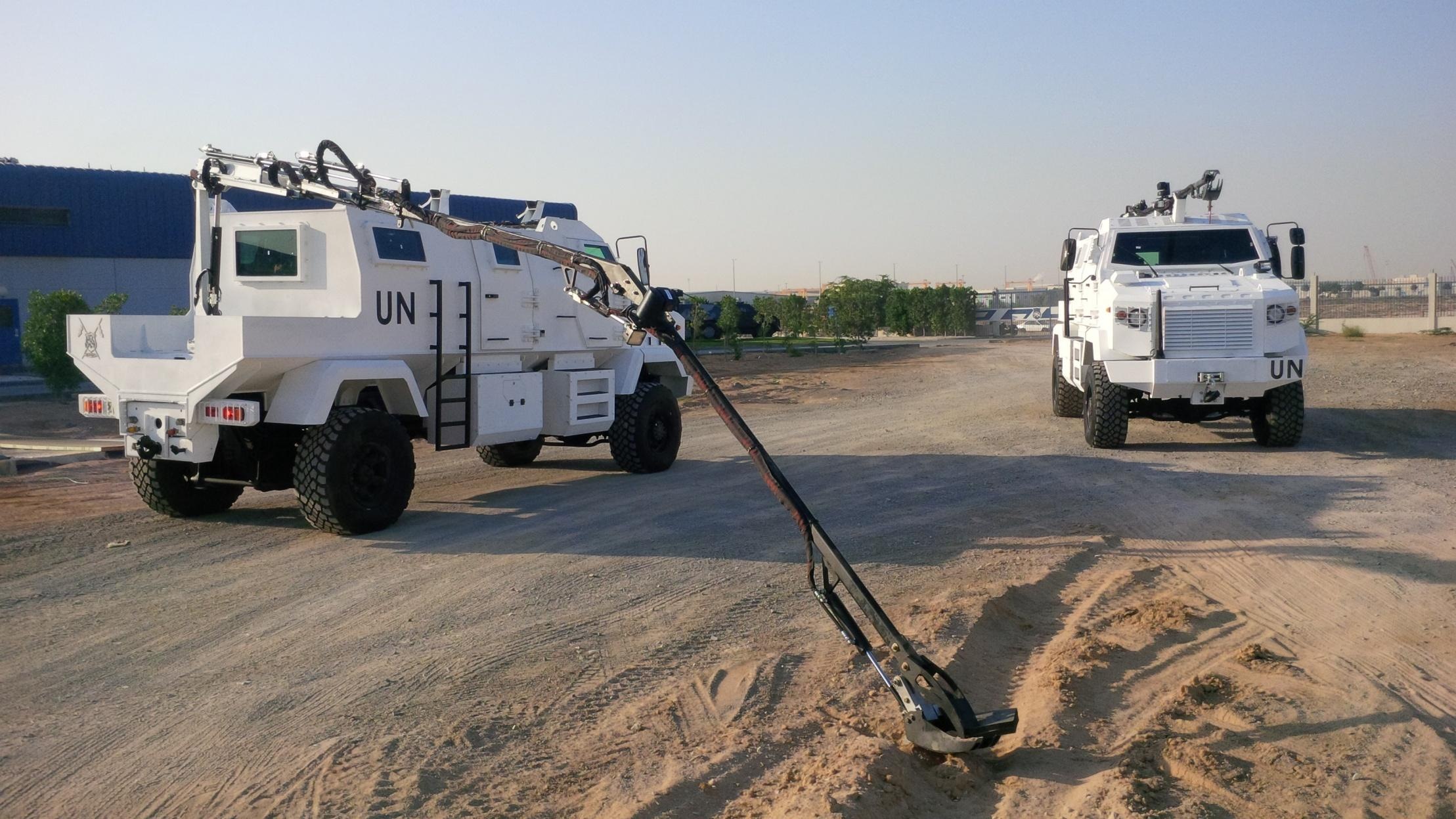

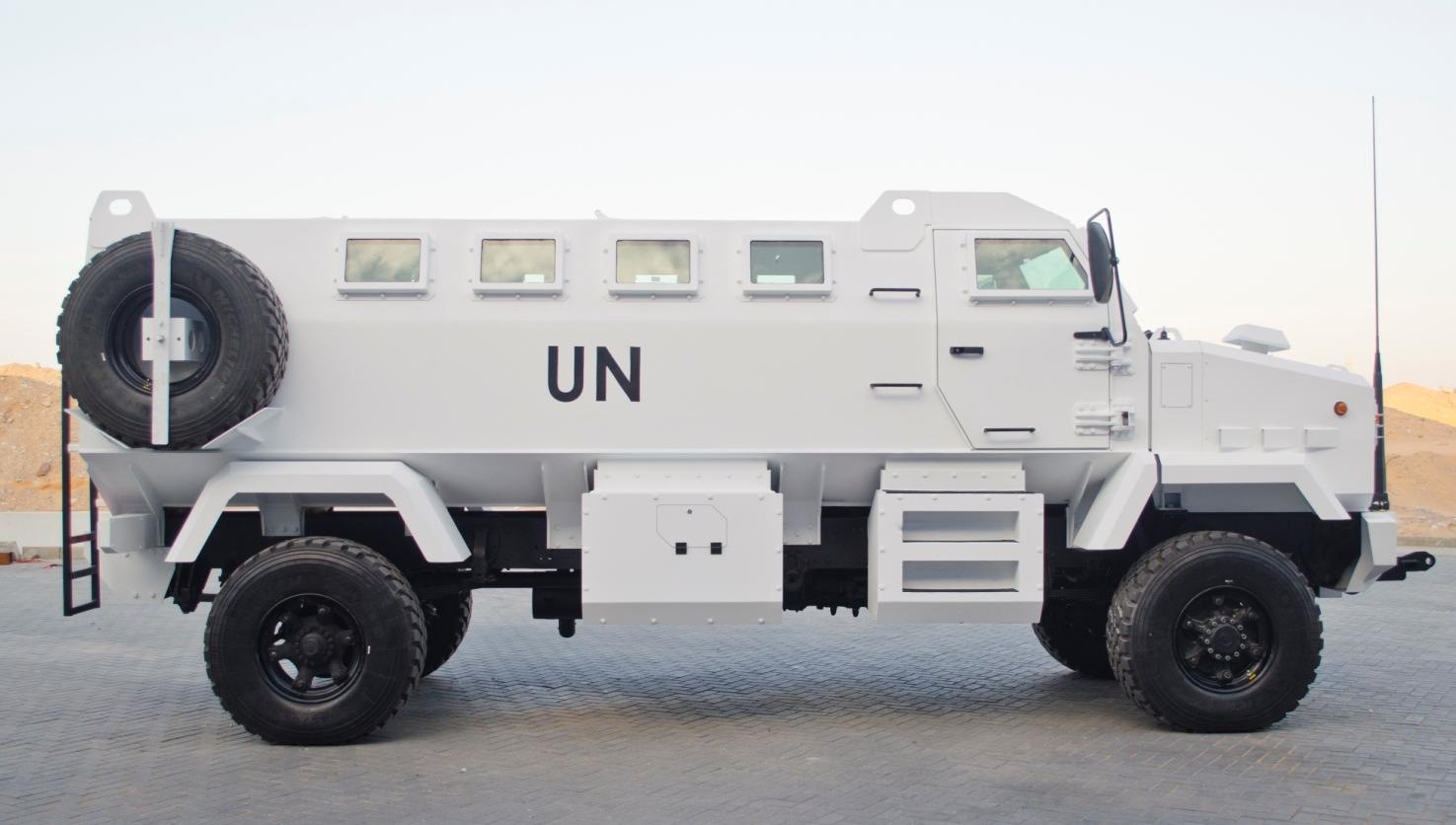

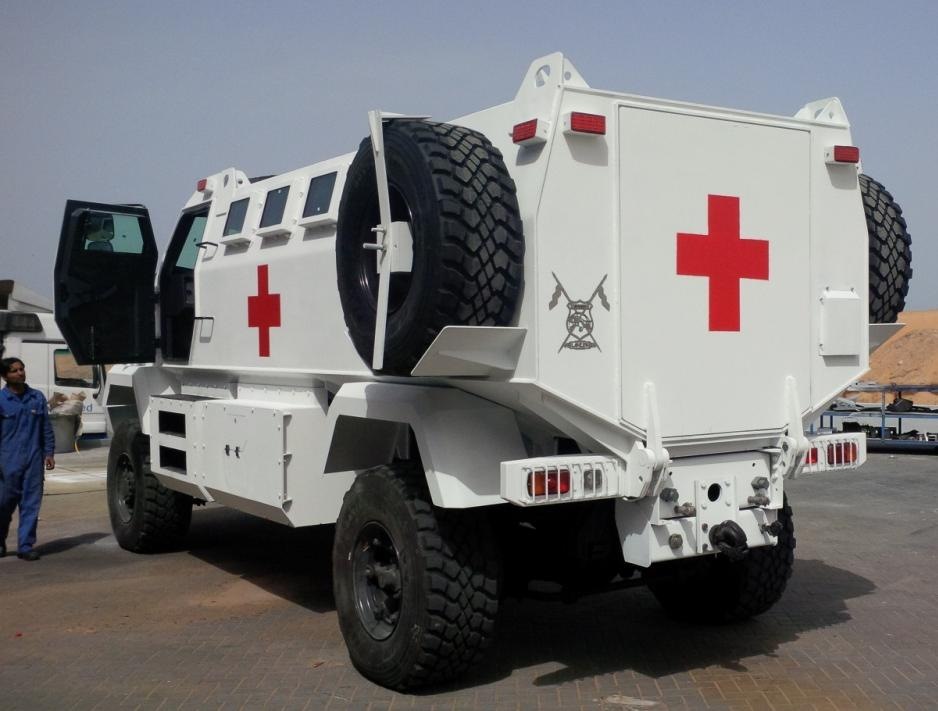

A new armored truck Shrek One (KrAZ MPV) is developed on a chassis of KrAZ. Joint development of India and Ukraine this is a multipurpose vehicle with a mine-protected designed for timely delivery of military units, which can be equipped with modern weapons of active and passive protection.

Protection against small arms, grenade shrapnel shells and weapons of mass destruction will provide by:

- solid body type , equipped with reinforced armored sheets;

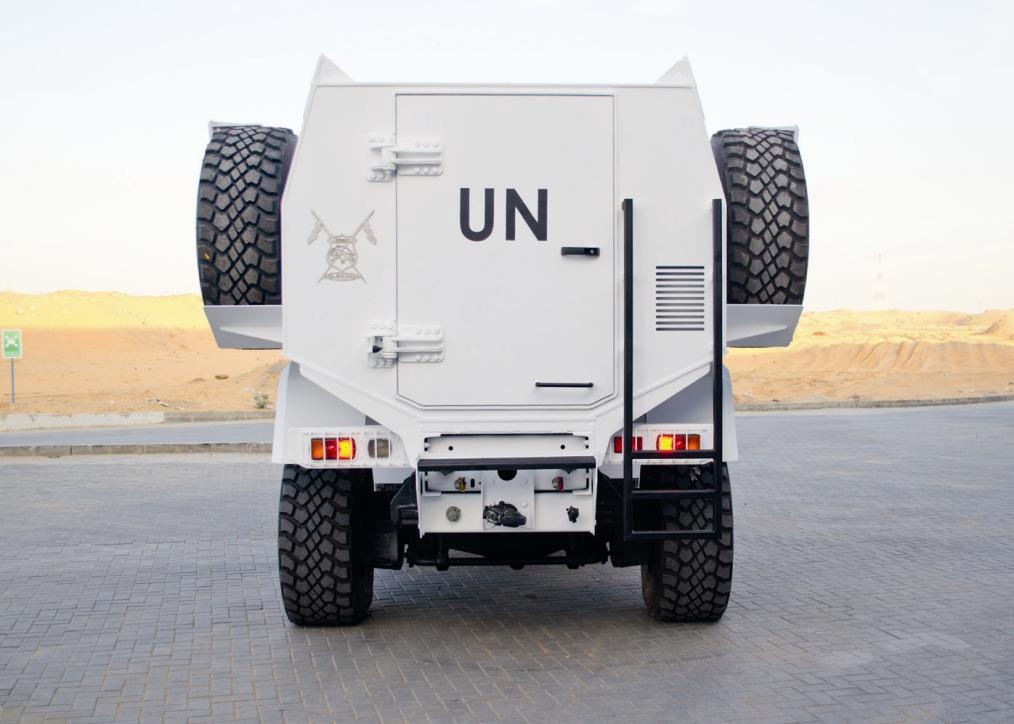

- double doors;

- double side walls ;

- 25 mm explosion-proof material inside the doors and walls;

- a bottom of the body has V-shape;

Performance:

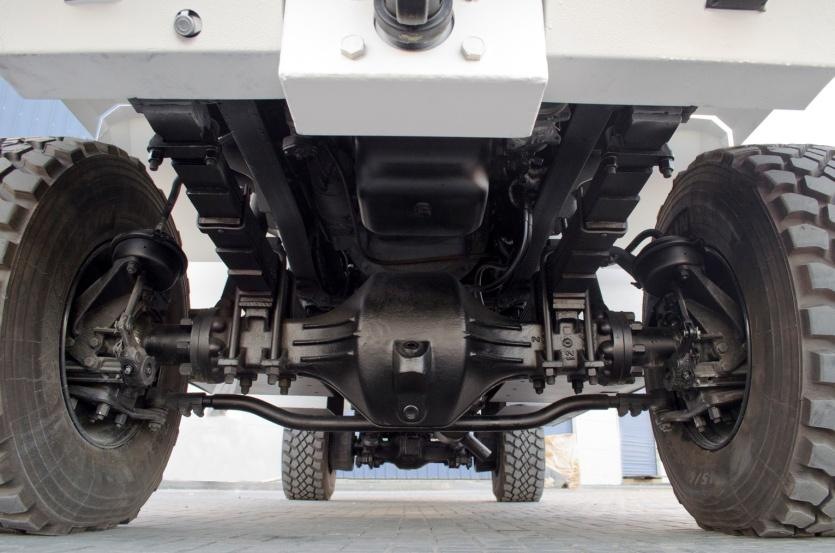

AWD chassis

Curb weight - 16000 kg

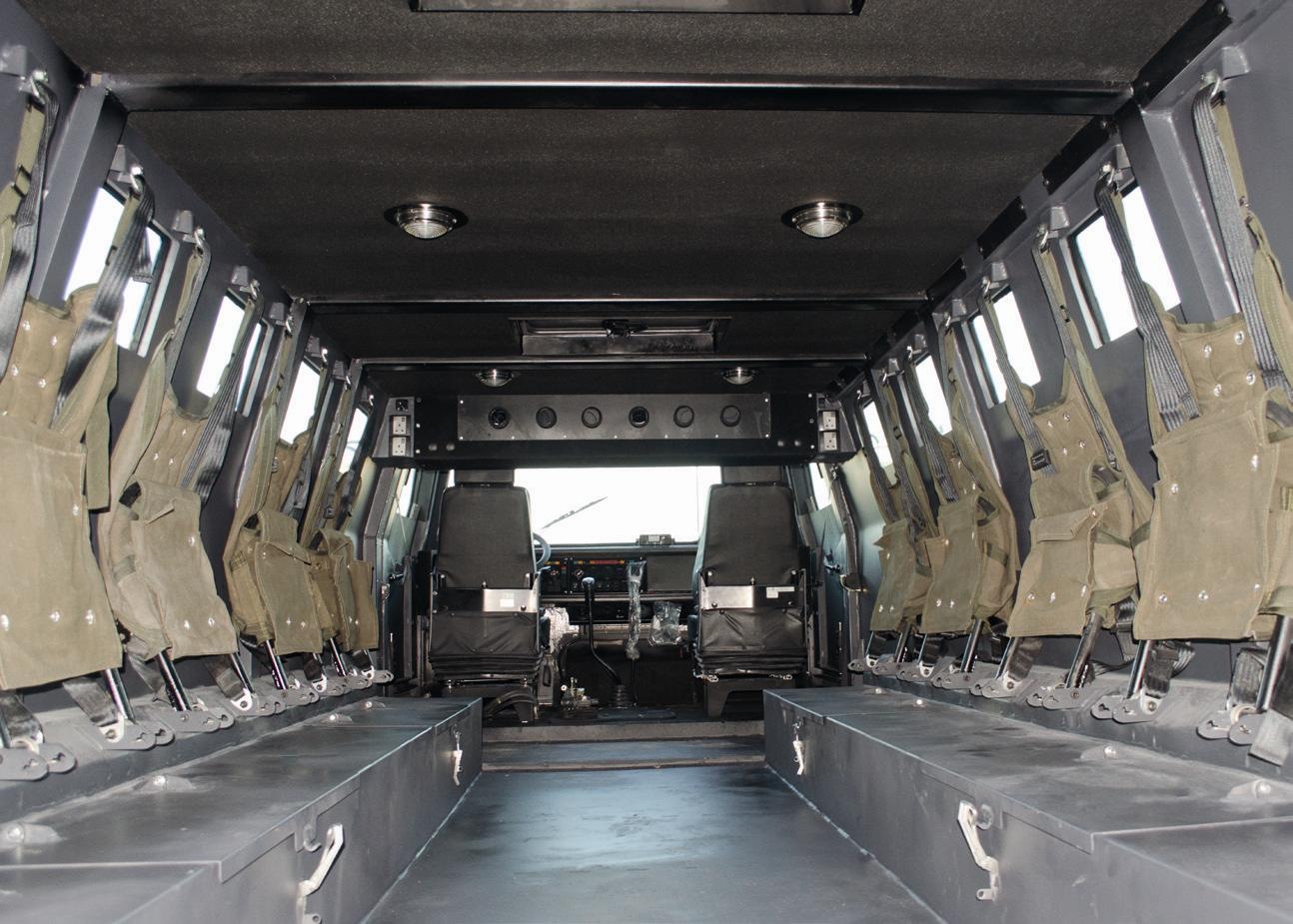

Seating capacity - 2 crew members + 3 operators

Ballistic protection - B6+/STANAG 4569 Level 2

Mine protection - 2xTM57 mine (14kg TNT) under any wheel; 1xTM 57 mine (7kg TNT) directly underneath

Transmission - 9JS150TA-B

Engine - YAMZ -238D ( Optionally can be installed Cummins or Deutz)
